Bestseller Breathing air compressor 100 l/min 300 bar Compact 400V

Breathing air compressor Compact 100 l/min 300 bar with electric motor 400V

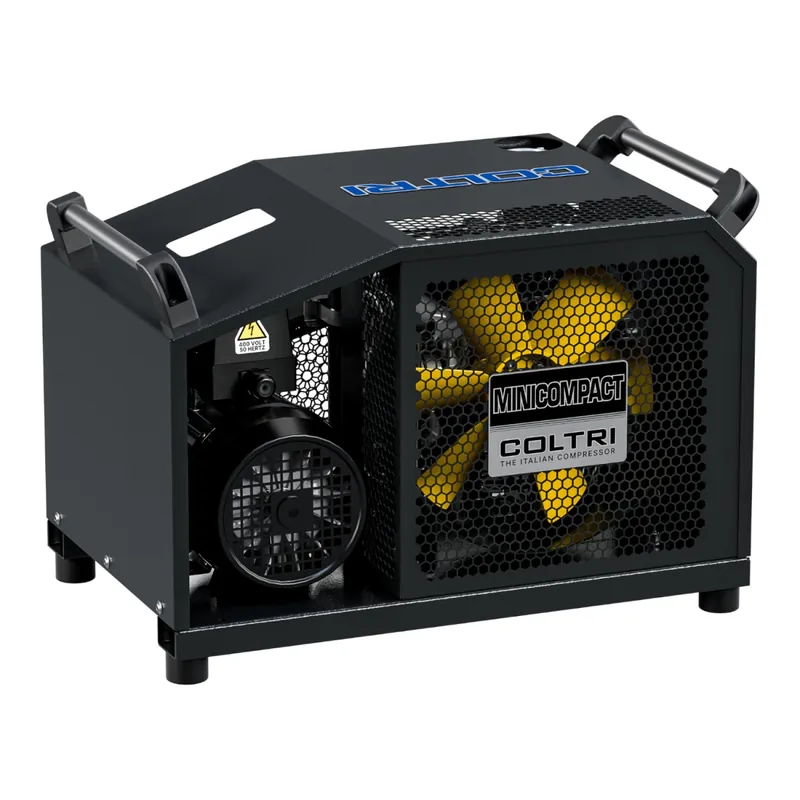

The Mini Compact is the breathing air compressor for the workshop. With its all-around closed housing it is well protected. Who needs a compressor as a diver but also uses the compressed air for other purposes. Impact wrenches, pneumatic nailers or tire inflators can easily be operated with a pressure reducer or an old first stage of a breathing regulator on the diving cylinder, has here a compressor of first choice. Operate the breathing air compressor with heavy current.

-Breathing air compressor 100 l/min 300bar with 400 V three-phase electric motor
-Max. Diving cylinders – filling pressure 300 bar
-Refill time of the diving cylinder 10 liters (70cu.ft.) in about 20 minutes from 0-200 bar
-Electric motor 400V 50 Hz, 3 Kw
-oil / water condensate drain manually
-air filter system with molecular sieve -activated carbon breathing air filter cartridge
-end pressure – safety valve,
-Filling hose with DIN300 bar connection according to the diving cylinder valves
-Adapter for any adaptation of the filling connection can be found in the section thread adapters
-weight 55 kg
-size: 72,5x37x51cm
-Can be retrofitted by us with electronic limit stop and/or automatic drainage
