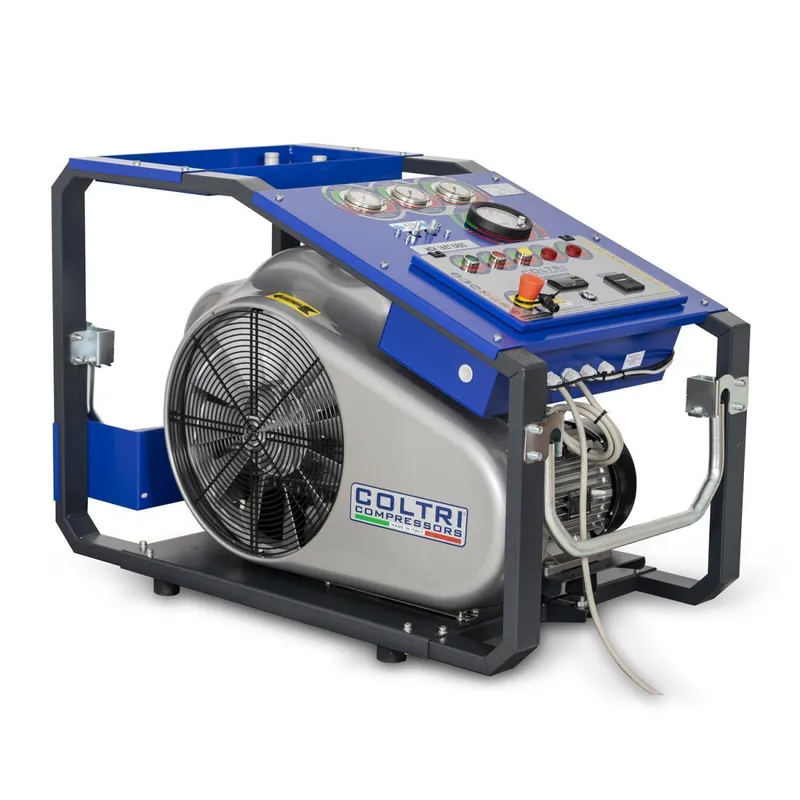

Bestseller Breathing air compressor MCH13 ERGO Filling capacity 235 l/min. 400V 50 Hz. 232bar

Breathing air compressor with electric drive 235 liters/min. Filling capacity 232 bar pressure

This Coltri compressor meets many requirements. It differs significantly from the smaller compressor variant, the MCH6, now known as the ICON. The compressor has 2 filling connections and can therefore fill two cylinders at the same time.

The ideal compressor for diving schools or diving centers. It is designed to be durable and robust.

Technical data of the breathing air compressor
-Filling capacity 235 l/min.
-Electric motor Three-phase motor 400 Volt 50 Hz, 4Kw drive power
-Pressure stage 232 bar
-Dimensions 112cm x 63cm x 77cm
-Weight 159 kg
-Noise level 95 dB
-2 filling hoses 1.20m with connection thread 232bar compressed air connection
-Automatic limit switch
-Automatic drainage
-Pressure retention valve
-Maxi-filter unit
-Interstage control pressure gauge
-Oil level control
-Automatic direction of rotation control
-Frame color black – blue

We are a German service partner of Coltri and can carry out spare parts and maintenance at any time.

When operating breathing air compressors, waste oil may be produced. Please observe the waste oil regulations when disposing of waste oil.
