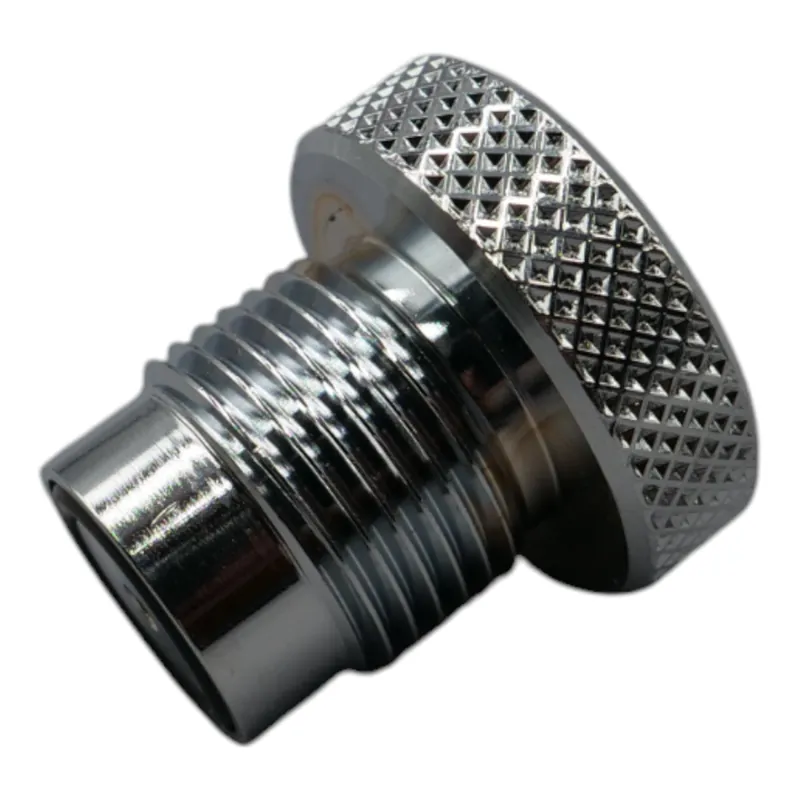

Blanking plug with vent for compressed air connections G5/8″ with O-ring pressure stable 300bar Preisknaller

Blanking plug for compressed air G5/8″ with O-ring pressure stable 300bar with ventilation

This blind plug can be used to unused secondary outlets on diving cylinders in a pressure-resistant manner, to prevent air loss in the case of leaking diving cylinder valves or in the case of accidental opening of the diving cylinder valve. Of course also for all other applications where compressed air outlets up to 300 bar are to be closed pressure-tight. Due to the venting, the plug can be loosened without any problems after venting. The small space at the bottom of the valve with its volume of less than one litre is quickly vented. The blind plug also ensures that the unused valve outlets are not contaminated or corroded by salt water.

Technical Blanking plug
-blind plug for compressed air connections 300bar
-design of the sealing bottles according to DIN EN-144
-venting via hexagonal screw
-pressure stable up to 300bar
-with O-ring for sealing in the valve,
-O-ring Nitrox and oxygen compatible
-Material brass, nickel-plated
-with hexagon or knurling, for easy loosening of the blind plug depending on stock.
-Also available for 200 / 232 bar diving cylinder valves / compressed air valves.
