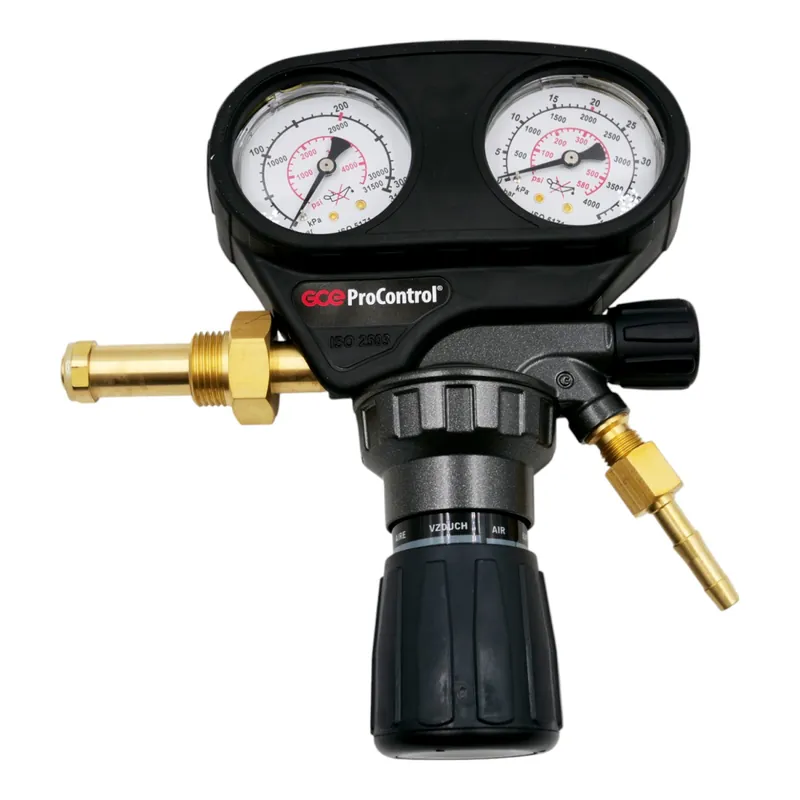

Bottle pressure regulator for compressed air from 200 bar to 0-20 bar. Highlight

Pressure reducer for compressed air from 200 bar to 0 – 20 bar adjustable

This pressure reducer for compressed air is suitable for driving compressed air tools, lifting cushions, impact wrenches, oxygen boosters, etc. on compressed air cylinders, compressed air bottles, or diving cylinders with a 200 bar valve according to DIN with G5/8″ internal thread. This pressure reducer is particularly used where a higher working pressure such as 10 bar is required. This is especially interesting because the usual workshop compressors only generate up to a maximum of 10 bar compressed air.
An empty diving cylinder still has a pressure of 50 bar, so there is enough pressure to fill a tire or operate an airbrush spray gun for a long time.

Technical data:

• Single-stage design pressure reducer
• Maximum inlet pressure 200 bar
• Adjustable outlet pressure 0 – 20 bar
• Safety valve on the low-pressure side
• Inlet connection: G5/8″ according to DIN 477, part 5
• Outlet connection: G1/4″ with 6mm nozzle according to EN 560
• Complies with the standards DIN EN ISO 2503 (DIN EN 585)
• Technical improvements reserved
• Pressure reducer meets industrial quality standards

With our thread adapter for nitrogen – compressed air, this regulator can also be used as a pressure reducer on nitrogen bottles. Application examples for nitrogen include air conditioning technology or pre-filling pressure accumulators. Increasingly, car tires are also filled with pure nitrogen. The absence of oxygen reduces tire aging.
