Breathing air compressor Force Four 650 ET 650 l/min Schneller Versand

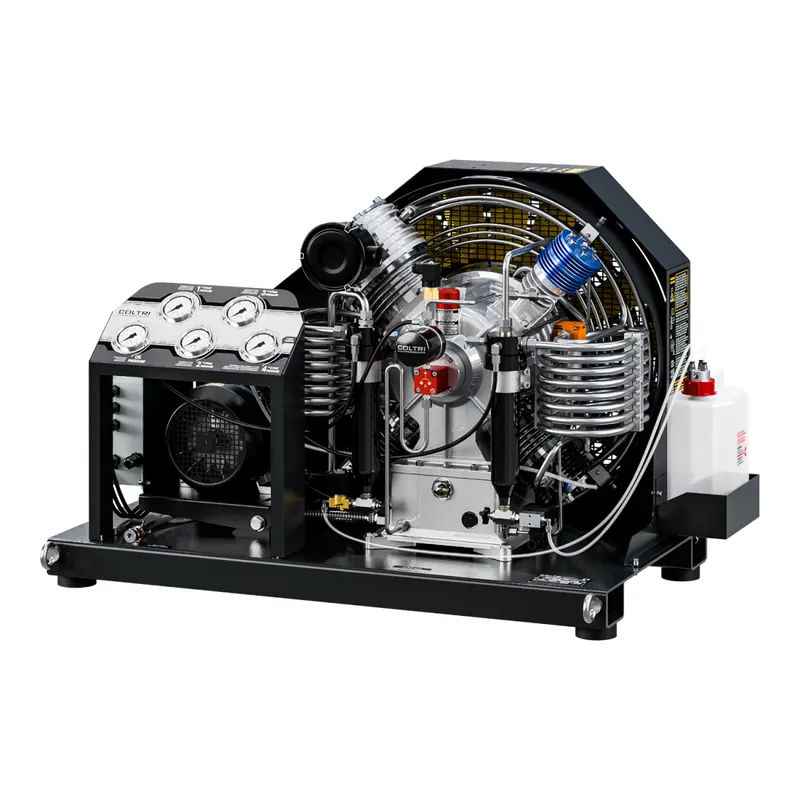

Breathing Air Compressor Coltri Force Four 650 ET650 l/min400 V 50 Hz

The Coltri Force Four 650 ET is the most powerful version of the Heavy Duty series in its basic configuration and has been developed for the highest demands in filling speed and continuous duty operation. With its high delivery capacity, this model is ideally suited for central filling systems with permanently high air demand.

Designed for demanding installation sitesincluding elevated ambient temperatures or limited ventilationthe Force Four 650 ET features an efficient cooling system and a robust industrial design for continuous operation.

The integrated 4-stage MCH 36 high-pressure compressor unit ensures stable pressure ratios and reliable performance output. In combination with the externally mounted dual Hyperfilter system with automatic condensate drainage, breathing air quality in accordance with DIN EN 12021 is guaranteed.

Whether for large dive centers, respiratory protection workshops, industrial facilities, or motorsport applicationswherever short filling times and maximum operational safety are essential, the Force Four 650 ET provides a high-performance solution.

Technical Details of the Force Four 650 ET

• Delivery rate: 650 l/min (39 m³/h)
• Compressor unit: MCH 36
• 4 compression stages
• Gas type: Breathing air in accordance with DIN EN 12021
• Working pressure: 232 / 300 / 330 bar
• Max. operating pressure: 420 bar
• Intake pressure: atmospheric / max. 300 mbar
• Ambient temperature: 10 °C to +40 °C
• Permissible altitude: 01,500 m
• Maximum inclination: 15°
• Motor power: 11 kW
• Operating voltage: 400 V / 50 Hz
• Weight: approx. 270 kg
• Frame: Steel construction, powder-coated (RAL 9005)
• Dimensions (W × D × H): 123.6 × 70.6 × 79.6 cm
• Lubrication system: Forced lubrication with gear pump
• Oil: Coltri ST 755
• Oil capacity: 4 liters
• Oil change interval: 1 year or according to operating hours
• Interstage and high-pressure final separators
• Dual Hyperfilter system (refillable or disposable cartridge)
• Air purification capacity: 3,050 m³ (at 20 °C / 300 bar)
• Automatic condensate drain system

Optional Equipment

• Presec filter monitoring system
• Tornado high-pressure refrigeration dryer
• Megafilter cartridges
• 2- or 4-position remote filling panel
