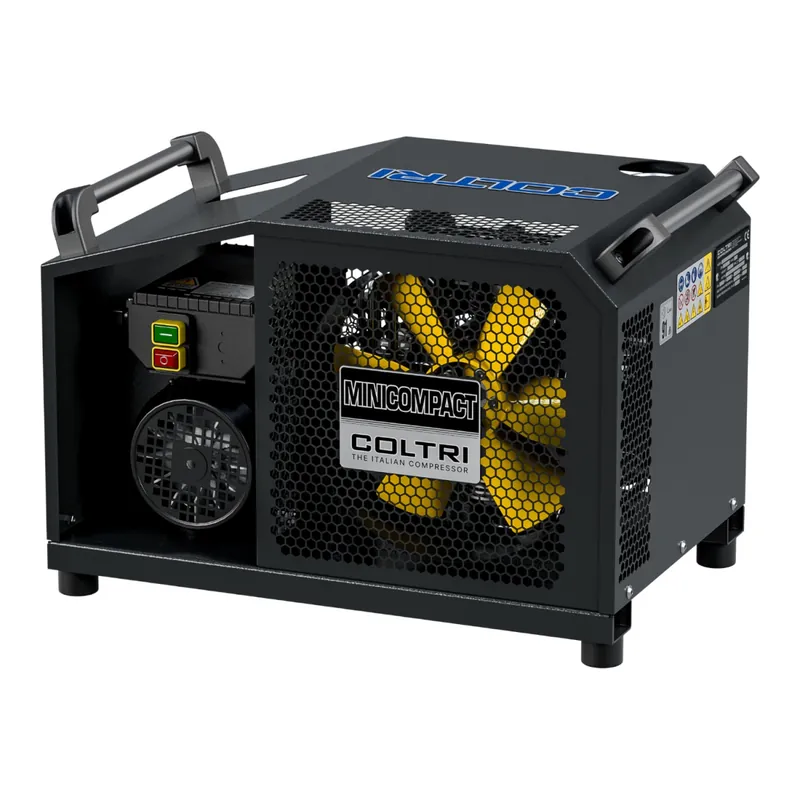

Breathing air compressor MINI COMPACT 100 l/min E-motor 230V 232bar 50Hz (MCH6 COMPACT) Autodrain Kracherpreis

Breathing air compressor Compact 100 l/min 232 bar with electric motor 230V

The Mini Compact is the breathing air compressor suitable for the workshop, diving or paintball. With its fully enclosed housing, it is optimally protected. If you need a compressor as a diver but also use the compressed air for other purposes. Impact wrenches, pneumatic nailers or tyre inflators can easily be operated with a pressure reducer or an old first stage of a regulator on the diving cylinder. The breathing air compressor is operated with a 230V light current connection from the household socket.

Technical data of the MINI COMPACT breathing air compressor

-Breathing air compressor 100 l/min
-Filling capacity 232bar with 230V electric motor
-Max. Max. filling pressure 232 bar
-refilling time of the diving cylinder 10 litres (70cu.ft.) in approx. 20 minutes from 0-200 bar
-Electric motor 230V 50 Hz, 2,2 kW
-Oil / water condensate drain automatically
-air filter system with molecular sieve -activated carbon breathing air filter cartridge
-end pressure -safety valve
-Filling hose with DIN200 bar connection
-dimensions 59,2cm, 38cm, 42,7cm
-Weight 47 kg
-Case colour: black

Can also be equipped by us with additional equipment (automatic limit switch and/or automatic shut-off).

We are German service partner for Aerotecnica Coltri and can carry out maintenance and supply spare parts/ consumables at any time.

When operating breathing air compressors, waste oils may accumulate. Please observe the Waste Oil Ordinance when disposing of the waste oil.
