Bridge middle section 200/300 bar, 156 mm distance lockable Garantierte Lieferung

„`html

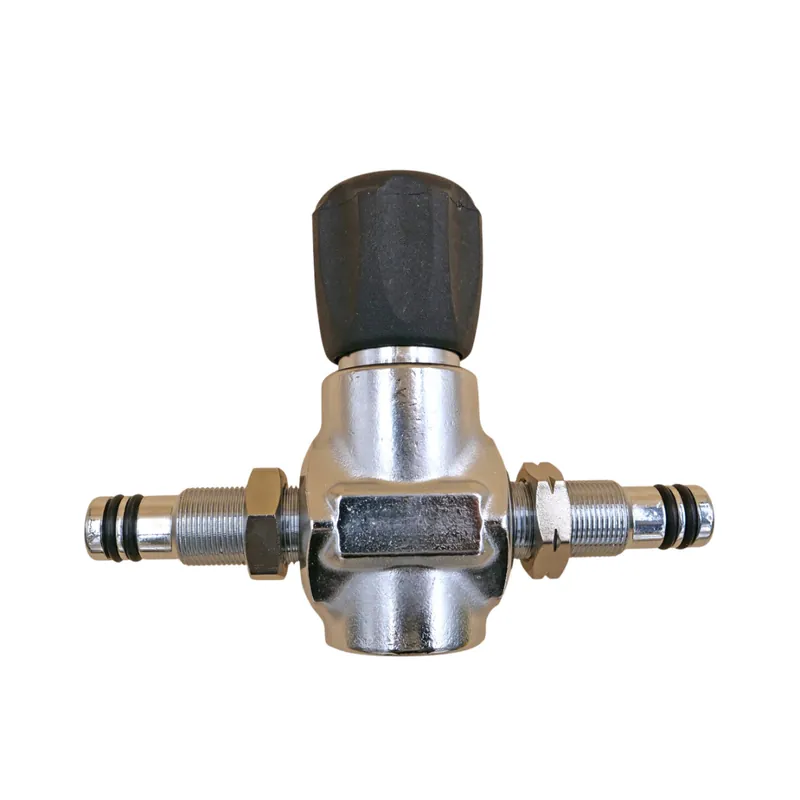

Bridge Centerpiece for Diving Cylinder Valves with M16 Connection (Manifold) Lockable

Diving cylinder valves as a valve combination with lockable bridges extend the diving cylinder into a twin set. The diving cylinders can be individually sealed during the dive, so that in the event of a regulator failure, the corresponding diving cylinder valve can be closed. The air supply can be fed to the second regulator via the lockable bridge centerpiece, which is opened. This ensures that the high air supply is always available. However, the bridge centerpieces are the weakest link in the chain and can easily bend if the diving equipment should fall. We offer the bridge centerpiece here as a replacement or to complete already existing diving cylinder valves.

Technical Data of the Bridge Centerpiece

• Bridge centerpiece lockable 200/230bar and 300bar
• Suitable for valves from Polaris, Scubapro, and all with M16 internal thread for valve extension
• Double O-ring sealed
• Suitable for diving gases air, nitrox, trimix, and oxygen
• For diving cylinders with 156mm distance center to center
• Centerpiece for diving cylinder valves for extension to valve bridge
• For diving cylinders with 140mm diameter, e.g., 5, 6, 7, 8, 8.5 liters
• Connections M16x1 and M16x1 left-hand thread secured with lock nuts

For use with nitrox and oxygen, this bridge must be oxygen-cleaned, which we can do upon customer request.

„`
