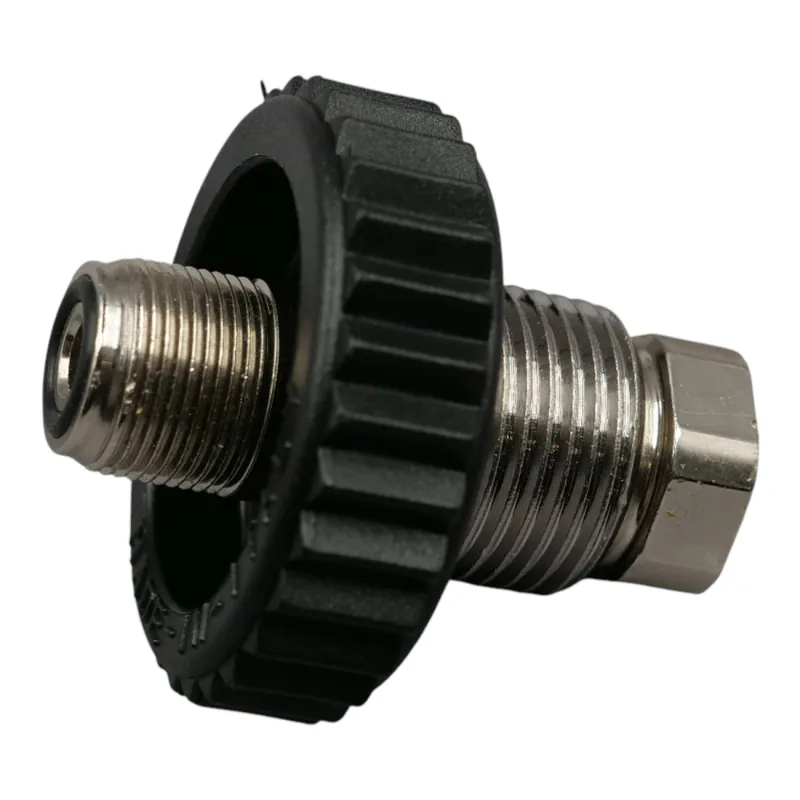

Connection shaft with handwheel for filling hose G5/8″ 300bar AG- M16x Markenprodukt

Connection shaft with handwheel for filling hose G5/8″ 300bar AG- G1/4″ AG

Connection shaft G5/8″ male thread to M16x1mm male thread. This connection shaft is used for mounting on filling fittings and filling hoses for filling or discharging compressed air / compressed air in diving cylinders or industrial compressed air cylinders. The connection shaft is suitable for diving cylinder valves and industrial valves in 200 bar and 300 bar versions with G5/8″ internal thread according to DIN. These tapping connections are standardized in DIN EN-144 for all threads, undercuts and sealing surfaces. The handwheel with ribbed surface can be tightened hand-tight, this is sufficient to pretension the O-ring seal sufficiently and achieve a seal.

Technical data Connection shaft with handwheel M16x1mm
-Connection piece for filling, compressor and high-pressure hoses
-External thread G5/8″ 300 bar compressed air (also suitable for 200 bar in every valve)
-Opposite side G 1/4″, metallic sealing cone 60° for hose connection
Material nickel-plated brass, ribbed plastic handwheel
