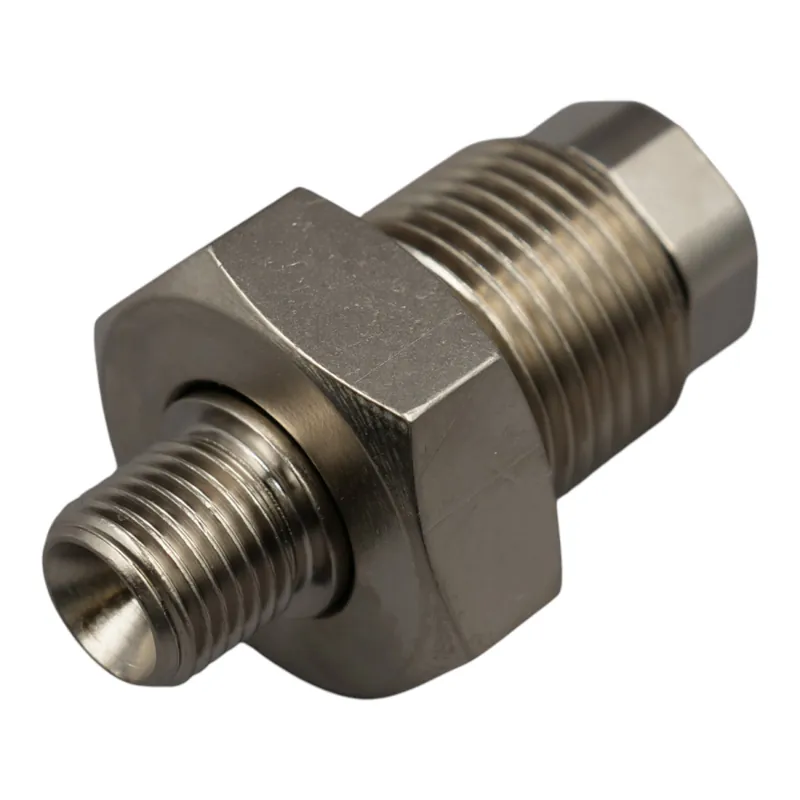

Connection shaft with pressure screw Filling hose G5/8″ 300bar AG- G1 Preisreduziert

Connection shaft with pressure screw for compressed air valves 300 bar

Connecting shaft for mounting on filling valves and filling hoses for filling or discharging compressed air / compressed air in diving cylinders or industrial compressed air cylinders. The connection shaft is suitable for diving cylinder valves and industrial valves in 200 bar and 300 bar versions with G5/8″ internal thread. These tapping connections are standardized in DIN EN-144 for all threads and sealing surfaces. The pressure screw with 30mm wrench size can be tightened or loosened with the appropriate tools. This is particularly advantageous for fixed piping or permanently connected storage cylinders

Technical data Connecting shaft with pressure screw
-Connection piece for filling, compressor and high-pressure hoses or connections of storage cylinders
-External thread G5/8″ 300 bar compressed air ( suitable for every valve also 200 bar ) see also our article pressure screw
-opposite side G 1/4″ male thread, metal sealing cone 60° for hose connection
Material brass nickel-plated, pressure screw with wrench size 30mm
