Cylinder pressure regulator for compressed air from 300 bar to 0-10 bar (G5/8″ male thread) Aktuell

„`html

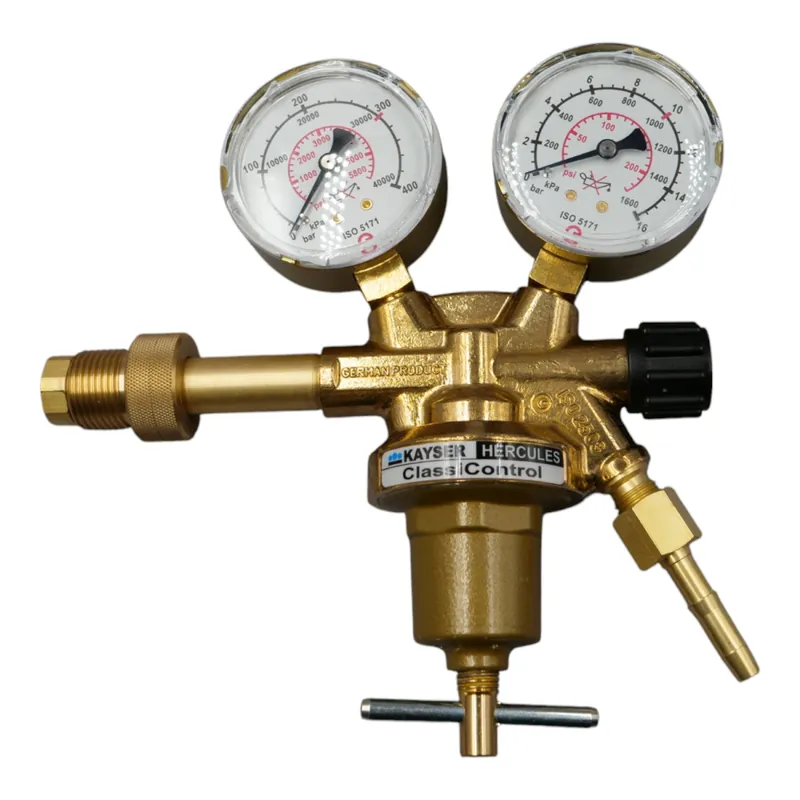

Pressure Reducer for Compressed Air, Adjustable from 300 bar to 0 – 10 bar

This bottle pressure reducer for compressed air is suitable for operating pneumatic devices, lifting bags, impact wrenches, oxygen boosters, etc. This bottle pressure reducer can be used on compressed air bottles, compressed air cylinders, or diving tanks with a valve according to DIN with G5/8″ internal thread.

Technical Data of the Compressed Air Pressure Reducer

• Single-stage design
• Inlet pressure max 300 bar
• Output pressure adjustable from 0 – 10 bar
• Safety valve on the low-pressure side
• Connection input: G5/8″ compressed air external thread
• Connection output G1/4″ with 6mm nozzle according to EN 560
• Subject to technical modifications
• Pressure reducer meets industrial quality standards
• Image similar

„`
