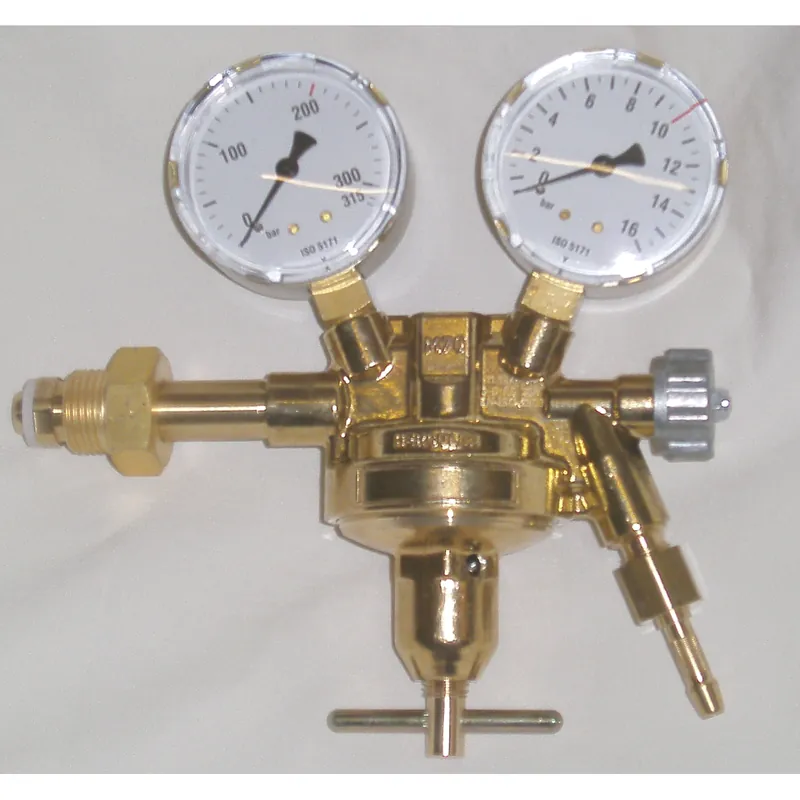

Pressure Reducer for Compressed Air Adjustable from 200 bar to 0 – 10 bar

This pressure reducer for compressed air is suitable for operating pneumatic devices, lifting bags, impact wrenches, oxygen boosters, etc., on compressed air cylinders, compressed air tanks, or diving cylinders with a DIN valve with G5/8″ internal thread 200 bar.
An empty diving cylinder still has a pressure of 50 bar, which is sufficient to inflate a tire or to operate an airbrush spray gun for a long time.

Technical Data:

• Single-stage design
• Inlet pressure max 200 bar
• Outlet pressure adjustable from 0 – 10 bar
• Safety valve on the low-pressure side
• Inlet connection: G5/8″ according to DIN 477, Part 5
• Outlet connection G1/4″ with 6mm nozzle according to EN 560
• Technical development subject to change
• Pressure reducer meets industrial quality standards
• German manufacturer Herkules
• Image similar

With our thread adapter nitrogen – compressed air, this regulator can also be used as a pressure reducer on a nitrogen cylinder. Application examples for nitrogen include air conditioning technology or pre-filling pressure accumulators.

„`
