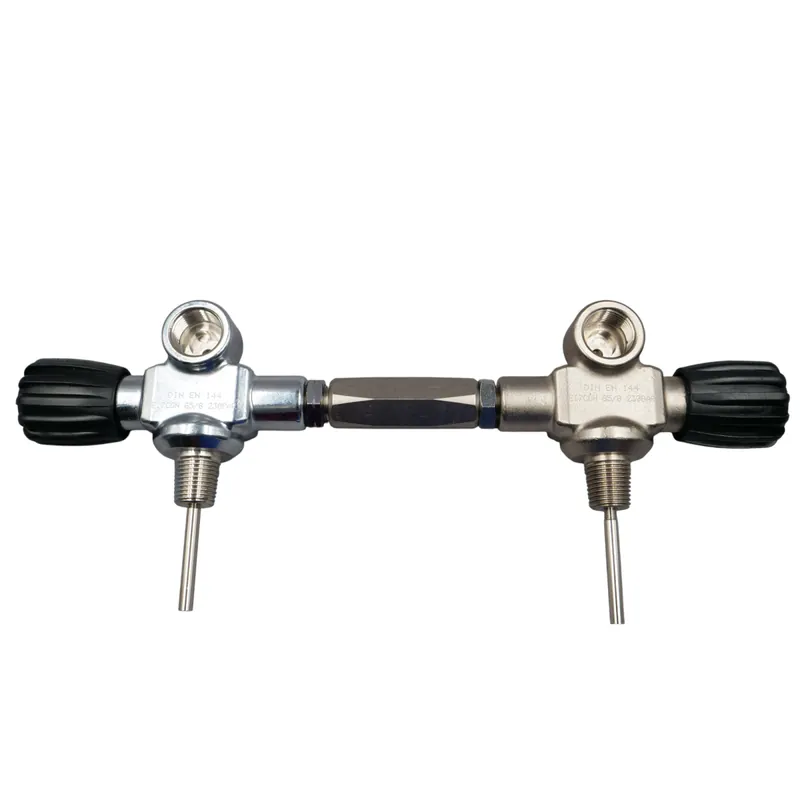

Direktkauf Pipe manifold compressed air G5/8” 200bar 185mm for scuba tanks 140/171mm 17E Small conical double scuba tank valve

Compressed air valve bridge for double devices with cylinder diameters up to 171 mm

Diving cylinders with a small conical neck thread are rarely offered as new cylinders, but there are hundreds of these cylinders in stock, whether from the past or as used cylinders from the fire department. The European standard EN-144 regulates this cylinder neck thread. Even if some in the diving industry believe they know better, this cylinder neck thread is also one of the permissible cylinder neck threads for diving cylinders, storage cylinders and breathing apparatus regulated in DIN standard EN-144.

Technical data of the small conical bridge for diving cylinders
-Valve bridge for diving cylinders with a diameter of up to 171 mm, e.g. 4, 7, 8, 10, 11 and 12 liter diving cylinders
-Pressure stage 230bar ( 200bar )
-Valve bridge, as a pipe bridge, connection between the scuba tanks, cannot be shut off
-Triple O-ring sealed
-Handwheels black
-Automatic compressed air connection ( compressed air ) G5/8″ to DIN
-for cylinders with small conical ( 17E ) cylinder neck thread to EN-144
-additionally available are blind screws so that the cylinders can also be used individually our article number BE-0740/50
-manufactured according to EN-144, DIN 477
-Chrome-plated cylinder valves and bridge center section
