Double pack 15 liters 300bar 204mm compressed air with lockable bridge 215mm Neue Kollektion

Double diving cylinders 15 liters 300 bar bridge 215mm cylinder distance

These double diving cylinders are, when diving, from the air supply largest double unit which is currently available on the market. The breathing air supply is with about 8100 standard liters of breathing gas larger than the weight of the same heavy 20 liters 200 bar double diving apparatus. But with a length of only 640mm this double unit with 2x15l 300 bar tanks is much better to trim and handle for the normal sized diver in the water.

technical data double cylinders 15 liters 300 bar

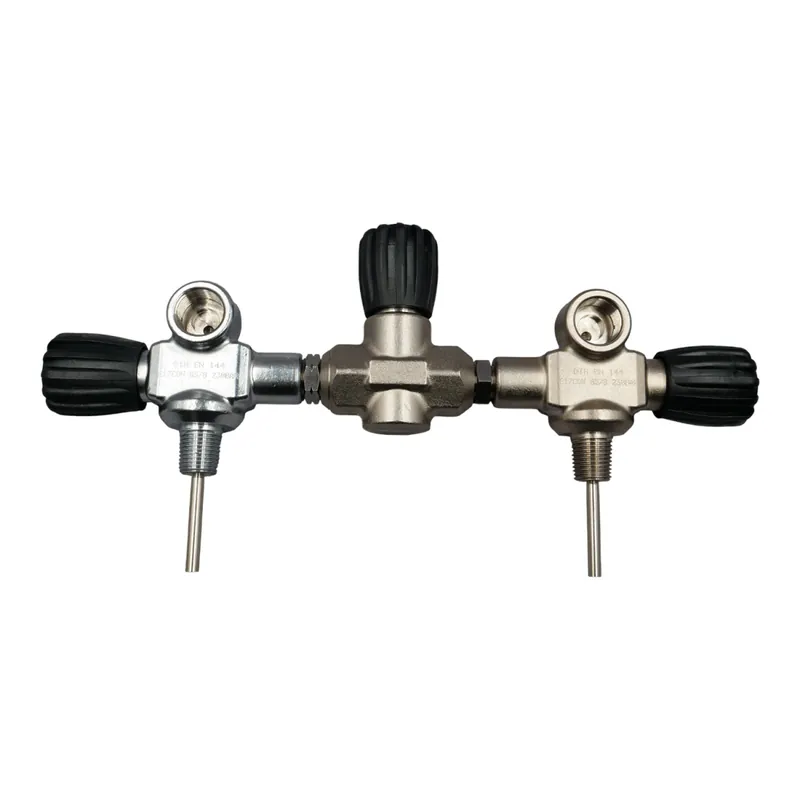

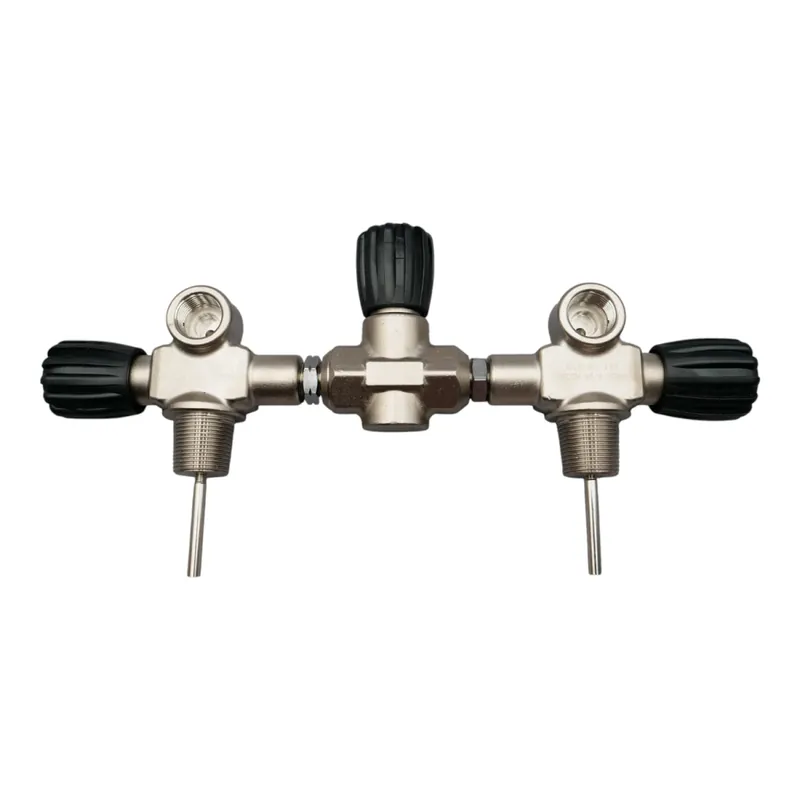

-lockable bridge with valves for right and left diving cylinder and connecting piece ( Manifold )
-bottle distance, bottle center – center 215mm
-Steel cylinders (diving cylinder) stamped Breathing Apparatus Group 1,
-Cylinders can be used as compressed air, Nitrox or oxygen cylinders depending on the valve.
Valves can be supplied on customer request oxygenclean also as compressed air valves.
-EU type examination
-injection galvanized, powder coated, color white RAL 9010
-Take-off connection for regulator: DIN compressed air connection thread G5/8″ 300 bar
-2x 15L diving cylinders 300bar Weight per cylinder 20 – 23 kg, depending on production batch
-declaration of conformity is included
-Stainless steel clamp and bolt set
-bolts available in M8 and M10
-bottle diameter 204mm
-commissioning test (TÜV) incl. with test date (deviation) +/- 6 months
-TÜV protocol as well as declaration of conformity is enclosed with the bottle or will be provided electronically
-Product may differ in appearance from picture
