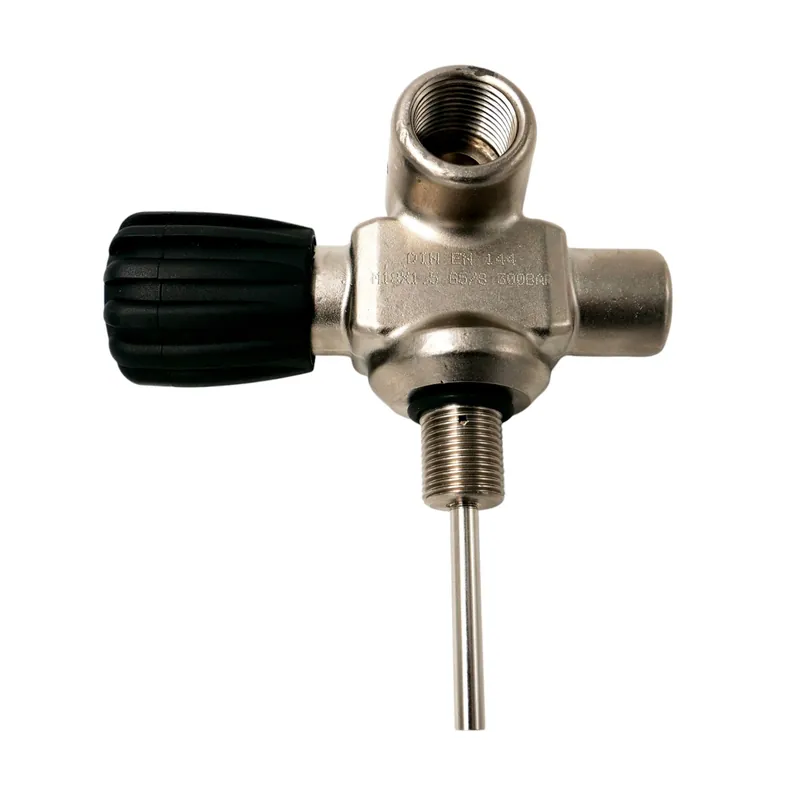

Expressversand Manifold monovalve compressed air G5/8” 300bar M18x1.5 diving cylinder valve left

Diving cylinder valve for compressed air expandable 300bar left bottle neck thread M18x1,5mm

Diving cylinders with M18x1,5mm cylinder neck thread are not widely used but just as used cylinders from the fire department, also as 300bar compressed air cylinder, often found on the second hand market. We offer here an expandable standard diving cylinder valve with M18x1,5 cylinder neck thread. This expandable diving cylinder valve can be used as a single valve, double valve or as a left bridge valve for double diving cylinders. As a 300bar diving cylinder valve the automatic connection according to DIN is a G5/8″ compressed air connection with long thread. The connection thread for the second outlet and for the bridge center part is a M16x1 left-hand thread. Thus the second outlets of Scubapro, Polaris, Barell and our valve combinations fit.

technical data of the left diving cylinder valve 300bar
-diving cylinder valve for compressed air 300bar with G5/8″ female thread for connection regulator / pressure reducer
-for cylinders with M18x1,5mm bottle neck thread
-Diving cylinder valve for double valve or left valve for double diving devices
-Made according to EN144
-Pressure rating 300bar black hand wheel,
-O-ring oxygen compatible
-Included O-ring and riser tube
