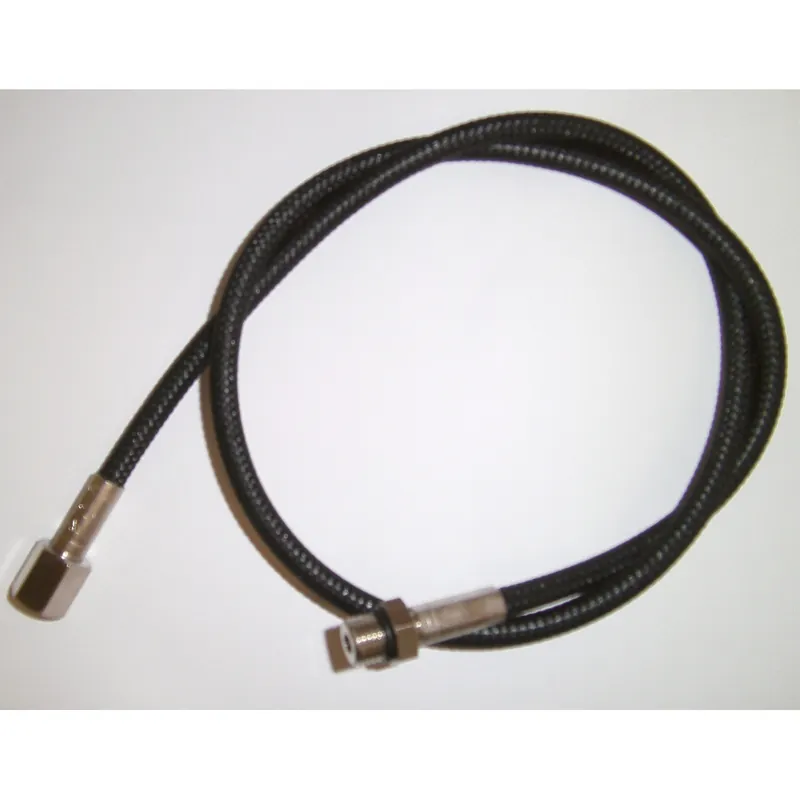

Extraflex Finimeter high pressure hose 80cm 300bar Online Kaufen

Extraflex high-pressure hose for finimeter, 80cm long 300bar

Extraflex high-pressure hoses have become fashionable. But why use an Extraflex hose? Normal high-pressure hoses have a three-layer construction. Gas-tight inner layer. Load-absorbing fabric layer. Cover layer to protect the fabric, which would otherwise no longer be able to absorb the load if damaged. The Extraflex hose only has a two-layer structure. This two-layer construction results in a slightly thinner outer diameter and a slightly smaller minimum bending radius of the Extraflex high-pressure hose. Unfortunately, this comes at the cost of a somewhat greater sensitivity to external damage to the Miflex high-pressure hose. This Extraflex hose can be used for 200 bar and 300 bar.

Technical data Extraflex high pressure hose

Extraflex high-pressure hose for pressure gauges, also suitable for oxygen / nitrox

Finimeter hose 80 cm long, measured without finimeter

Flow limitation in the hose connection, max. 40 litres/min. Loss of breathing gas

Connection thread 7/16″ UNF, standard connection thread for first stages High pressure outlet first stage regulator

Connection for pressure gauge with seal via Swifel

Colour of the hose black
