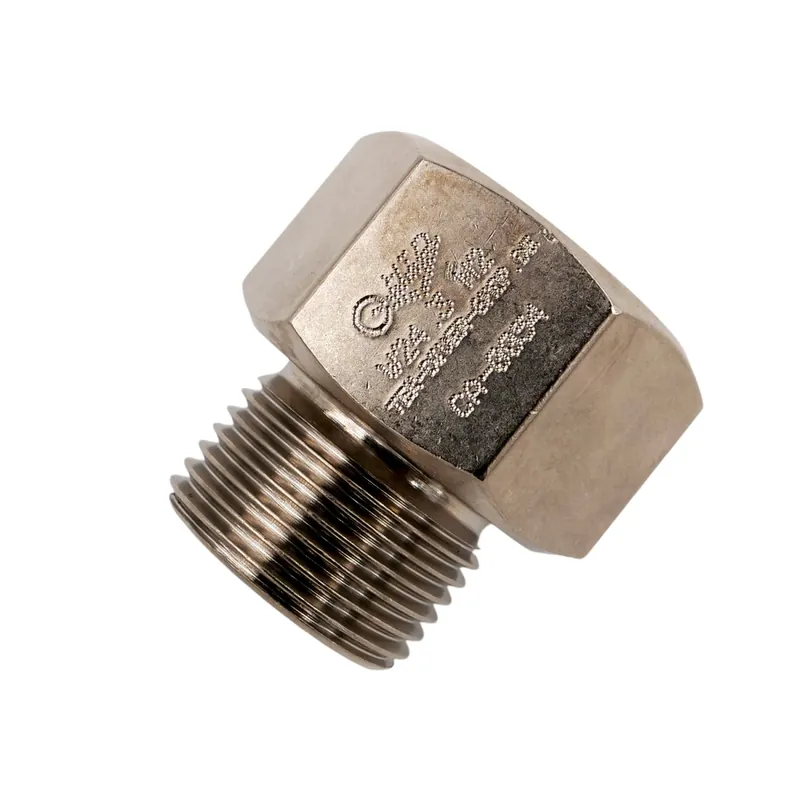

Filling adapter for nitrogen W24.32 for valves with residual pressure valve 200 bar Top-Seller

Thread Adapter according to DIN 477-10 for Nitrogen W24.32 for Valves with Flow Protection or Residual Pressure Valve

Nitrogen cylinders are equipped with valves that include flow protection / residual pressure valves. This additional valve, a type of check valve, prevents nitrogen gas from dropping to 0 bar if the cylinder valve is accidentally opened, leaving a residual pressure of 5 bar in the cylinder. To fill these nitrogen cylinders, this valve must be opened during the filling process using the set screw.

Technical Data of the Nitrogen Adapter for Cylinders with Residual Pressure Valve

• Material: Hexagon (SW32), nickel-plated brass
• Connection A: W24.32 female thread, nitrogen valve 200 bar according to DIN 477-10
• Connection B: W24.32 male thread, nitrogen valve 200 bar according to DIN 477-10
• Adjustment screw with hex socket for actuating the flow protection / residual pressure valve in the cylinder valve
• O-Ring: NBR
• Total length: 35 mm

The user must ensure that the selected valve outlet connection cannot be connected to fittings of other standards or gases in order to prevent hazardous situations (e.g. leakage, incompatibility, risk of asphyxiation, explosion hazard).
