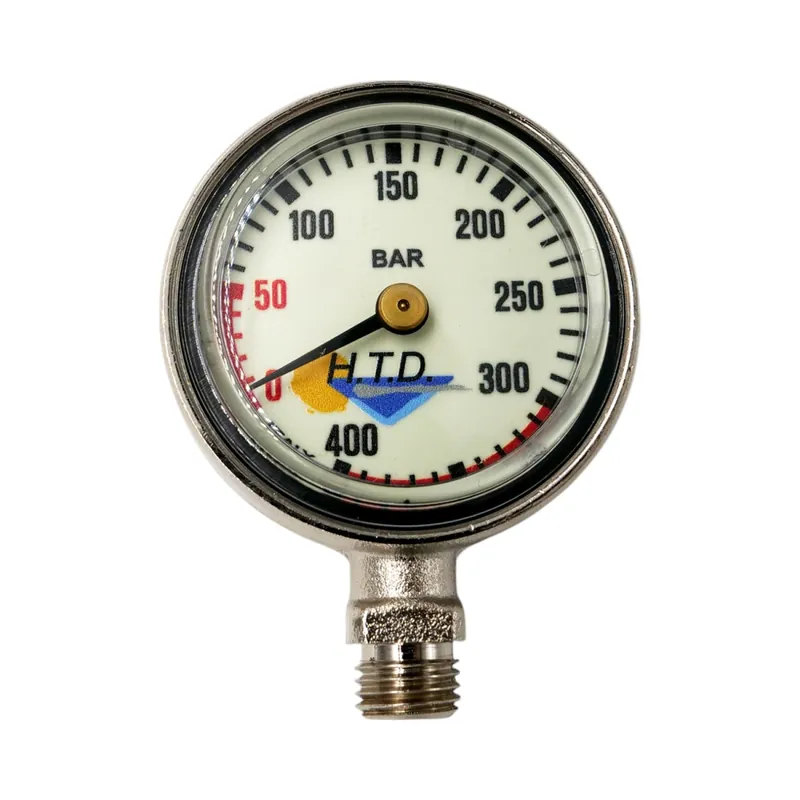

Finimeter single compressed air white dial with black labeling Preis Gesenkt

Finimeter Slimline Pro Replacement Instrument with White Dial and Black Text

The SLIMLINE Finimeter can be installed in various consoles but is also usable as a standalone device. This SLIMLINE pressure gauge measures pressures up to 400 bar with an accuracy class of 2.5. The large white dial makes it easy to read the displayed pressure even in darkness and poor visibility during a dive. The sports diver has a reliable instrument here for monitoring their breathing gas supply in the diving cylinder.

Technical Specifications of the Finimeter:
Diameter: 50mm
Diameter at the raised edge: approximately 42mm
Thickness: approximately 18.5mm
Hardened scratch-resistant mineral glass, thickness: 5mm
Brass casing
Connection with 7/16″ UNF and swivel bore (standard connection for Finimeter hose)
White luminescent dial
Black text – Range 0-50 bar in orange (warning color)
Digit height: approximately 4mm
Scale maximum value: 400 bar

CE0474
