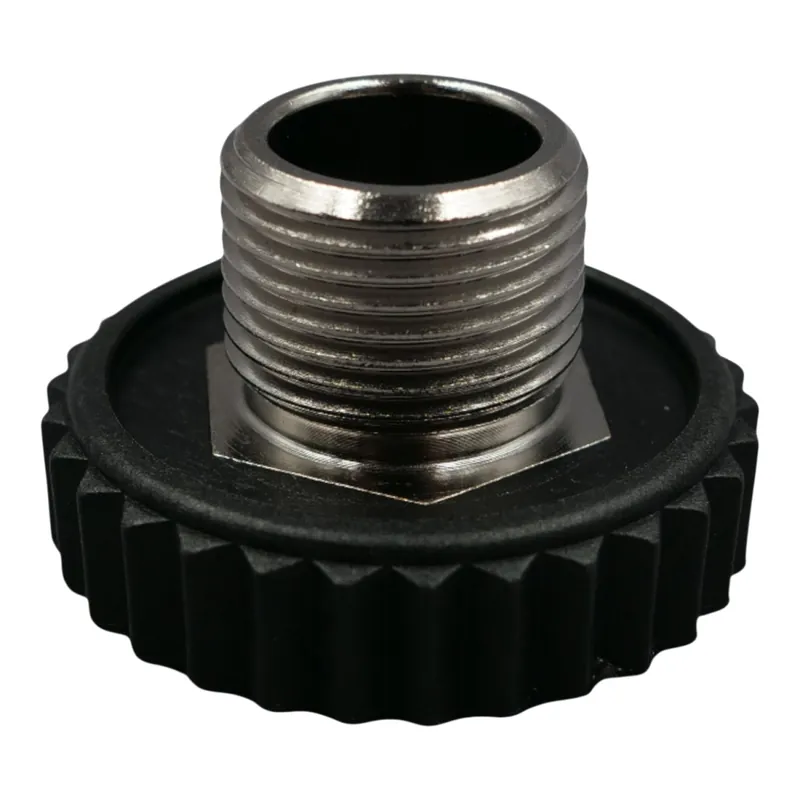

Geprüft Handwheel for G 5/8″ compressed air connection 200/300 bar, long version

Handwheel for G 5/8″ Compressed Air Connection 300 bar

This handwheel is also used on filling hoses, overflow hoses, and connecting hoses. The outlet connection on compressed air cylinders is a G5/8″ threaded connection according to DIN, and valves for compressed air cylinders, air cylinders, and diving cylinders have an internal thread according to EN-144 and DIN 477. The long version, i.e., 300 bar, also fits 200 bar (232 bar) compressed air valves / air valves. The main body made of brass is encased with a ribbed plastic handwheel. This ribbing allows for tool-free assembly of filling hoses, first stages, etc.

Technical :

• Handwheel for first stage high-pressure shaft 300 bar
• Inner diameter 16mm
• Thread G 5/8″, 18mm long (23mm)
• Ribbed plastic handwheel
• Suitable for all regulators with 16mm high-pressure shaft

„`
