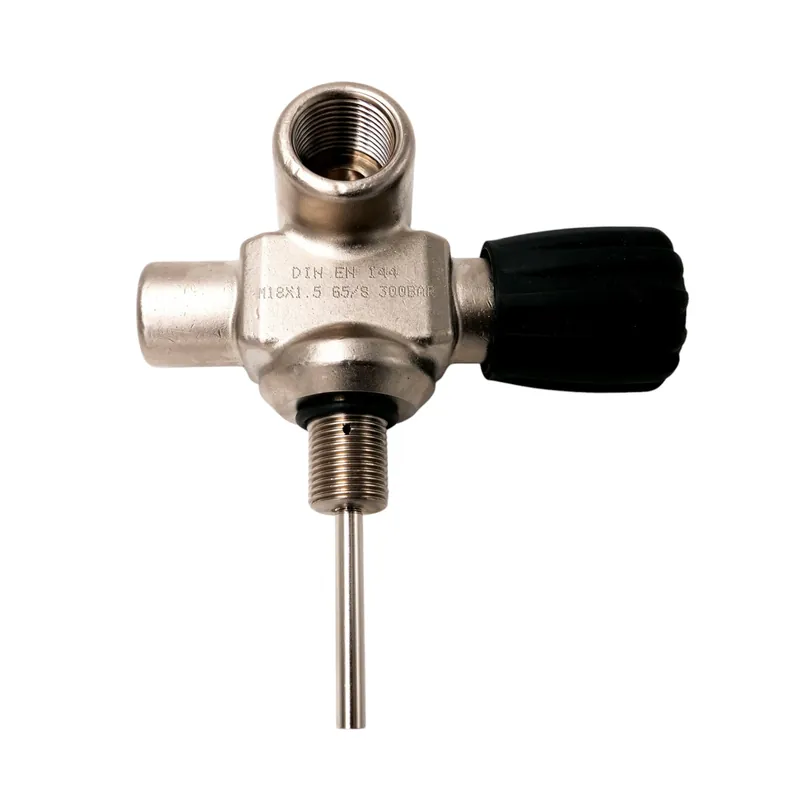

Geprüft Manifold monovalve compressed air G5/8” 300bar M18x1.5 diving cylinder valve right

Diving cylinder valve for compressed air expandable 300bar right cylinder neck thread M18x1,5mm

Diving cylinders with M18x1,5mm cylinder neck thread are not widely used but just as used cylinders from the fire department often found on the second hand market. Especially the 300bar breathing apparatus are available as steel or carbon cylinders and have in most cases an o-ring sealed cylinder neck thread M18x1,5. We offer here an expandable standard valve with M18x1,5 cylinder neck thread as right diving cylinder valve. This expandable diving cylinder valve can be used as single valve, double valve or as right bridge valve for double diving cylinders. The automatic connection is a G5/8″ 300bar compressed air connection according to DIN. The connection thread for the second outlet and for the bridge center part is a M16 right-hand thread. This connection can be provided either with a second outlet, a separately closable valve or with a blind screw, when used as a double valve or in a double diving unit the blind screw is omitted. We have in our store also the left valve. Sidmount – Divers use this valve also for their sidemount tanks.

technical data of the right 300bar diving cylinder valve
-diving cylinder valve for compressed air 300bar with G5/8″ internal thread, long version for the connection of the regulator / pressure reducer
-for diving cylinders with M18x1,5 mm cylinder neck thread
-Bottle valve for double valve or right valve for double diving 300 bar
-Made according to EN144
-pressure stage 300bar
-black handwheel,
-Supplied with: O-ring well oxygen compatible,
riser tube
Blanking plug M16x1 right-hand thread
