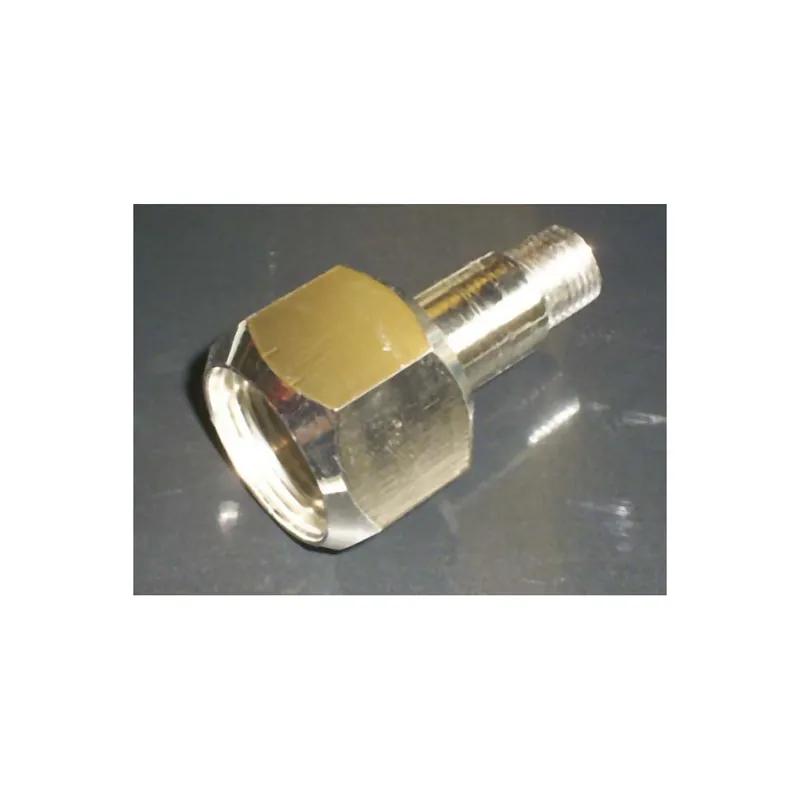

High-pressure connection for nitrogen W24 union nut with connection piece G 1/4 “ Markenprodukt

High pressure connection for nitrogen valves, W 24 union nut with connection piece G 1/4″

The EN-144 standard regulates the connection threads of the various gas cylinder valves. For nitrogen, a W24 connection thread is provided for tapping. Nitrogen is used as a filling gas for pressure accumulators, heating systems, tire inflation and as a test gas. In some cases, however, it is necessary to assemble suitable tapping fittings for the application. This nitrogen connection shaft can be used for this purpose.
-Connection for nitrogen valves 200 bar
-union nut thread W 24 female thread
-Wrench size 30mm
-High pressure connection shaft G 1/4″ External thread, with 60° sealing cone
Material nickel-plated brass
-O-ring sealed, O-ring suitable for oxygen

“ = inch (inch)

Our adapters are manufactured with a test certificate in accordance with DIN EN 10204 – 3.1
