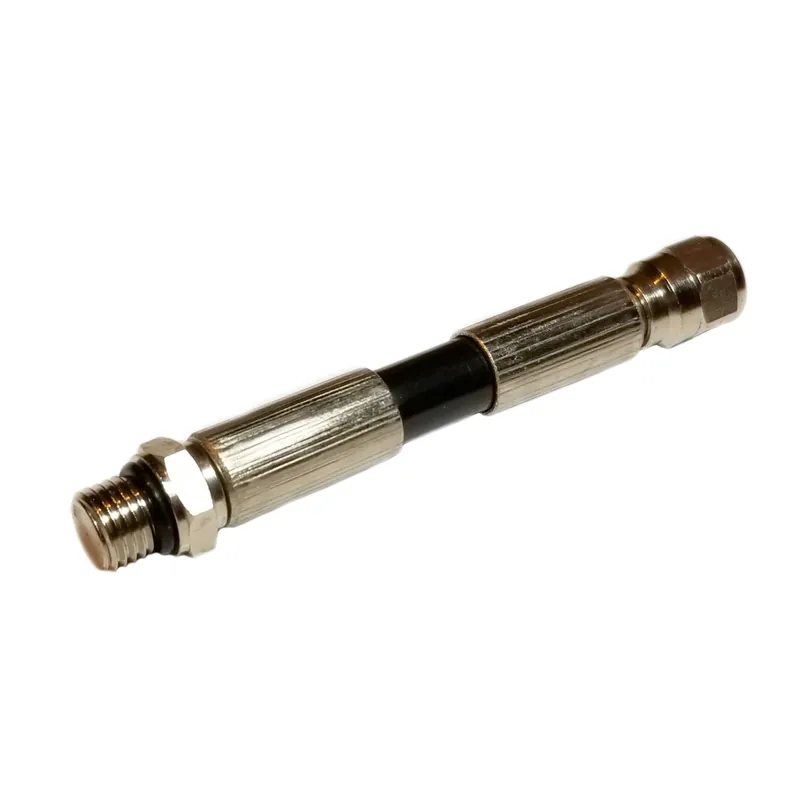

HP Hose for Pressure Gauge, Oxygen Compatible, Short 10cm

Often there is no space on the first stage of the regulator to attach the dive computer’s transmitter. This high-pressure hose with a length of 10cm helps in such cases. Naturally, it is identical in construction to any other pressure gauge hose, just shorter. It is also well-suited as a short pressure gauge hose on the stage bottle’s pressure gauge or the regulator when sidemount diving. Divers often bend the short pressure gauge hose 180° upwards. This exceeds the minimum bend radius of the high-pressure hose, leading to damage.

Technical Data of the High-Pressure Hose / Pressure Gauge Hose

• High-pressure hose for pressure gauge, also suitable for oxygen
• Connection thread 7/16″ UNF, standard thread for high-pressure outlet first stage regulator
• Hose 10 cm long with connections
• particularly suitable for pressure gauges on stage bottles
• Flow restriction in hose connection, max 40 liters/min.
• flexible black rubber hose
• a swivel is needed for sealing at the pressure gauge (please order separately)
• when used as a transmitter extension for the dive computer, an additional flat-sealing gasket (gasket for pressure gauge connection) is required and available from us separately
• other various lengths available

„`
