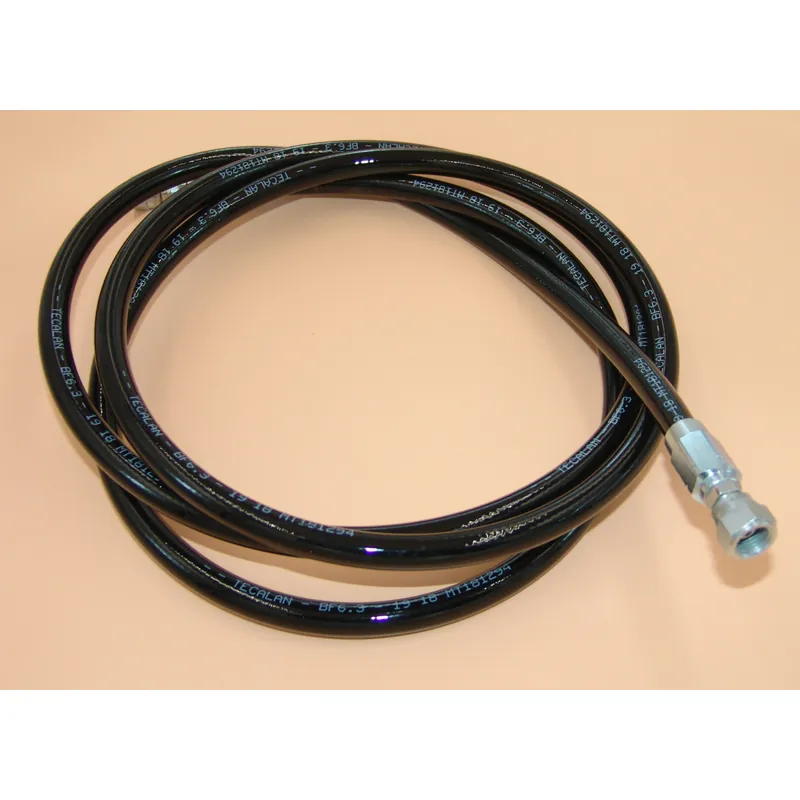

High-pressure hose suitable for oxygen up to 330 bar with G1/4″ union nut connections Neu

High-pressure hose operating pressure up to 330 bar, suitable for oxygen in different lengths

Oxygen is a very special gas, not only because it is vital for us, but also because it chemically reacts with almost all other substances. This can happen slowly as oxidation or very violently as an oxygen explosion.

Therefore, very special hoses are needed to transfer oxygen. When the pressure reaches 200 bar or 300 bar, the selection of oxygen hoses becomes very limited. The operational safety of oxygen filling and extraction systems with pressure-bearing oxygen hoses and the use of our oxygen hoses in these systems is the responsibility and testing of the operator and installer of the oxygen system. Special precautions must be taken against oxygen pressure surges, contamination by fats, oils, and dust, which can lead to ignition of the oxygen hose and the oxygen system by oxygen. This hose is conditionally oxygen-compatible (pressure, temperature, flow rate, pressure surges, and purity).

Technical data of the high-pressure hose

• Hose in various lengths
• Nominal width 6mm
• Permissible operating pressure at +20°C max. 330 bar
• Oxygen compatible (conditional resistance), (pressure, temperature, flow rate, pressure surges, and purity)
• Construction: inner layer Polyamide 12, polyester braid, outer layer polyurethane
• Wear-resistant and flexible
• Lightweight
• Temperature resistant from -60° C to +100° C (briefly up to +120° C)
• Connection on both sides G1/4″ union nut with 60° sealing cone
