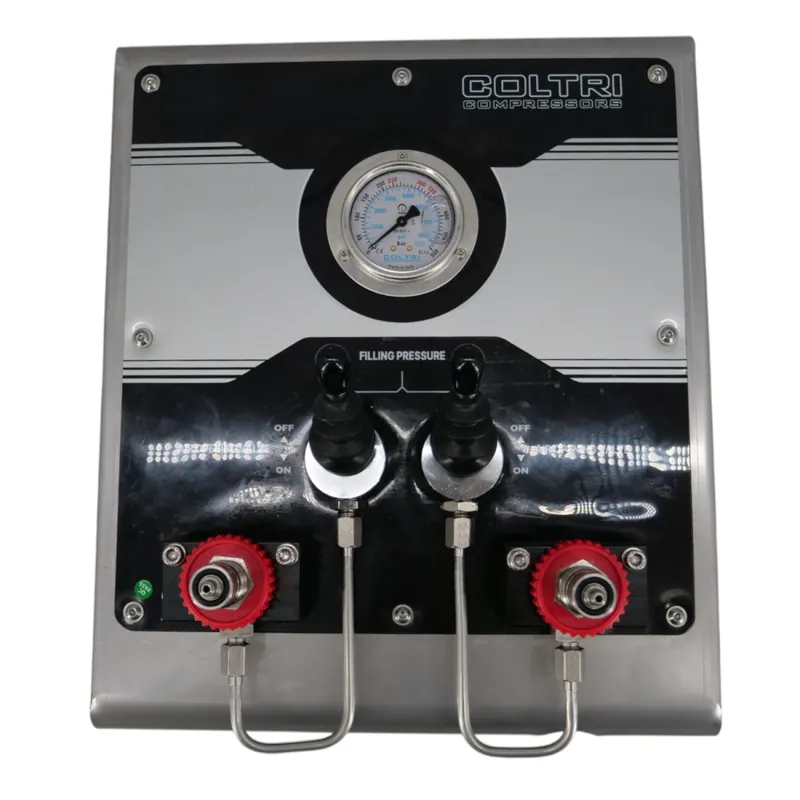

Filling panel with 2x 200bar separate outlet for direct connection

The filling panel is specifically designed for use in paintball and firefighting. The filling ramp is used wherever high-pressure compressors are installed in separate rooms and are separated from the filling location of the compressed air tanks. The filling bar offers two connections for 200 bar, allowing flexible filling of various breathing air cylinders/paintball tanks.

The filling station provides two 200bar compressed air G5/8″ male thread DIN connections. The supplied connection hose has a 7/16″ JIC thread and is 3.0m long. Thus, they can be directly connected to Coltri compressors without an adapter.

With an additional thread adapter G5/8″ female/female thread, sport rifle cartridges can be filled directly.

Technical Data

• Stable stainless steel housing
• two outlets for 200bar
• Connection thread G5/8″ compressed air 200bar according to DIN EN 144-2
• Total size: 34×43.6×26.9cm
• for wall mounting
• Length of the connection hose: 3.00m
• 1 glycerin-filled pressure gauge for precise pressure display (inlet pressure)
• Compliant with EN 12100/112100/2
• Maximum pressure: 250bar

„`
