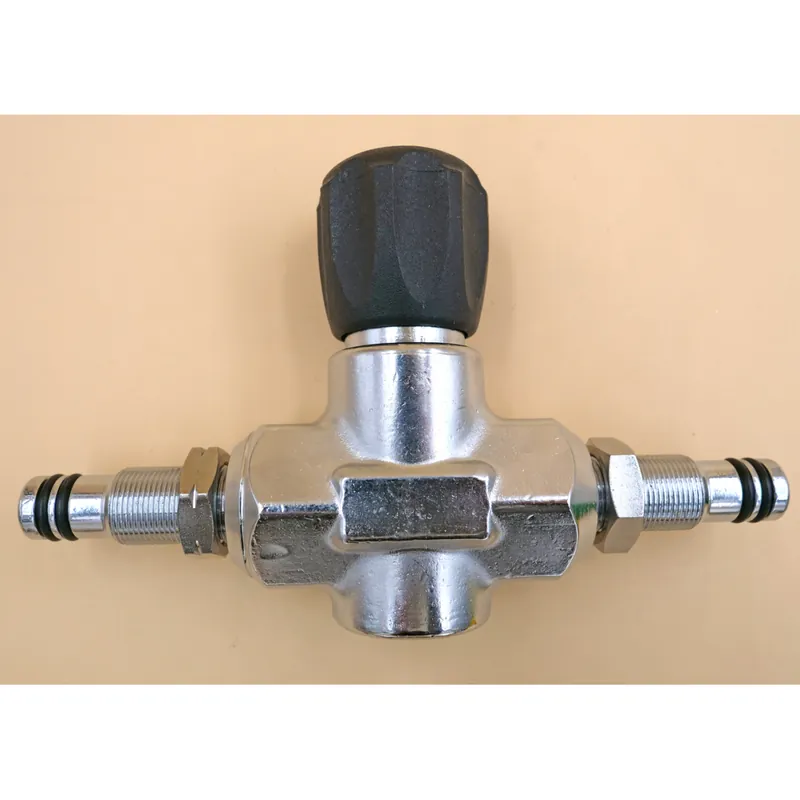

Manifold center section 200/300 bar, 193 mm spacing, lockable. Neue Ware

Manifold Center Section for Diving Cylinder Valves with M16 Connection (Manifold) Lockable

Diving cylinder valves combined with lockable manifolds convert a single cylinder into a double cylinder setup. Each cylinder can be closed individually during a dive, allowing the corresponding valve to be shut off in case of regulator failure. The air supply can be redirected through the lockable manifold center section, ensuring that the remaining air is available to the second regulator. However, the manifold center section is often the weakest link and can easily bend if the diving equipment is dropped. We offer this manifold center section as a replacement or to complete existing diving cylinder valves.

Technical Specifications of the Manifold Center Section

• Lockable manifold center section for 200 / 230 bar and 300 bar
• Compatible with valves from Polaris, Scubapro, and all valves with M16 internal thread for valve extension
• Double O-ring sealed
• Suitable for diving gases such as air, Nitrox, Trimix, and oxygen
• For diving cylinders with 193mm spacing, center to center
• Center section for converting diving cylinder valves into a manifold system
• Designed for diving cylinders with a 178mm diameter, such as 10 and 12 liter cylinders
• Connections secured with locknuts: M16x1 and M16x1 left-hand thread

For use with Nitrox and oxygen, this manifold must be oxygen-cleaned, a service we offer upon customer request.
