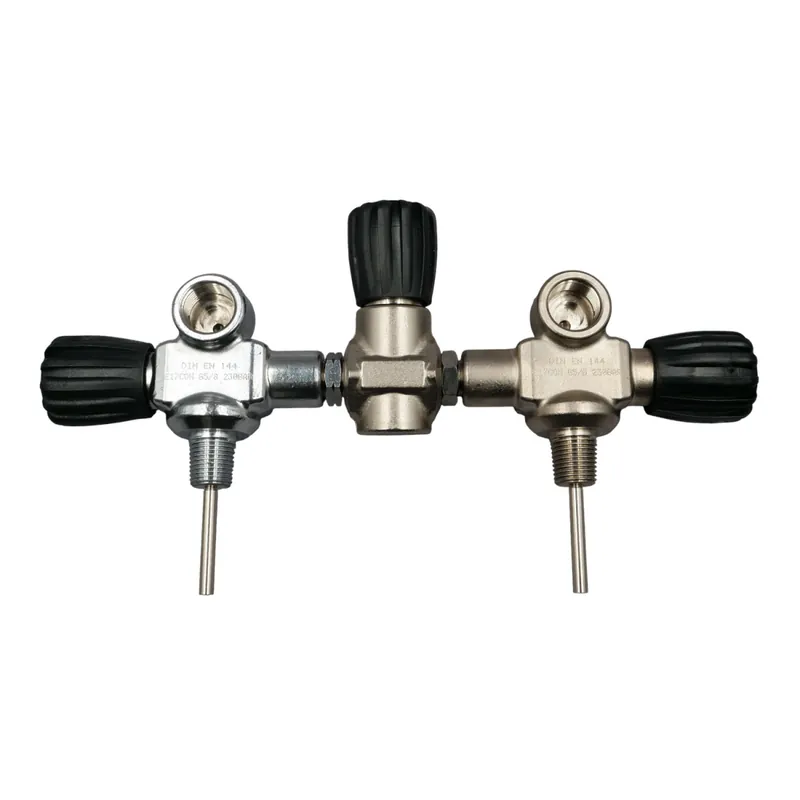

Manifold compressed air G5/8” 200bar 156mm for scuba tanks 140mm 17E Small conical double scuba tank valve Sichere Zahlung

Compressed air valve bridge for double devices with distance between cylinder centers 150mm

Diving cylinders with a small conical cylinder neck thread are rarely offered as new cylinders. However, there are hundreds of these breathing apparatus cylinders in stock, whether from the past or used by the fire department as breathing apparatus. The European standard EN-144 in conjunction with DIN 477 regulates this cylinder neck thread. Even if some in the diving industry believe they know better, this bottle neck thread is also one of the bottle neck threads for diving cylinders, storage cylinders and breathing apparatus regulated and permitted in DIN standard EN-144 for diving cylinders and breathing apparatus.

Technical data small conical bridge
-Valve bridge for scuba cylinders with 114 and 140mm diameter, e.g. 4, 5, 7 and 8 liter steel cylinders
-Pressure stage 230bar ( 200bar )
-Valve bridge, connection ( manifold ) between the scuba tanks, can be shut off
-Double O-ring sealed
Handwheels made of black impact-resistant plastic
-Automatic compressed air connection ( compressed air ) G5/8″ to DIN
-for cylinders with small conical ( 17E ) neck thread according to EN-144
-additionally available are blind screws so that the bottles can also be used individually
our article number BE-0740/50
-manufactured according to EN-144, DIN 477
-Material brass, immersion cylinder valves and bridge center section chrome-plated
