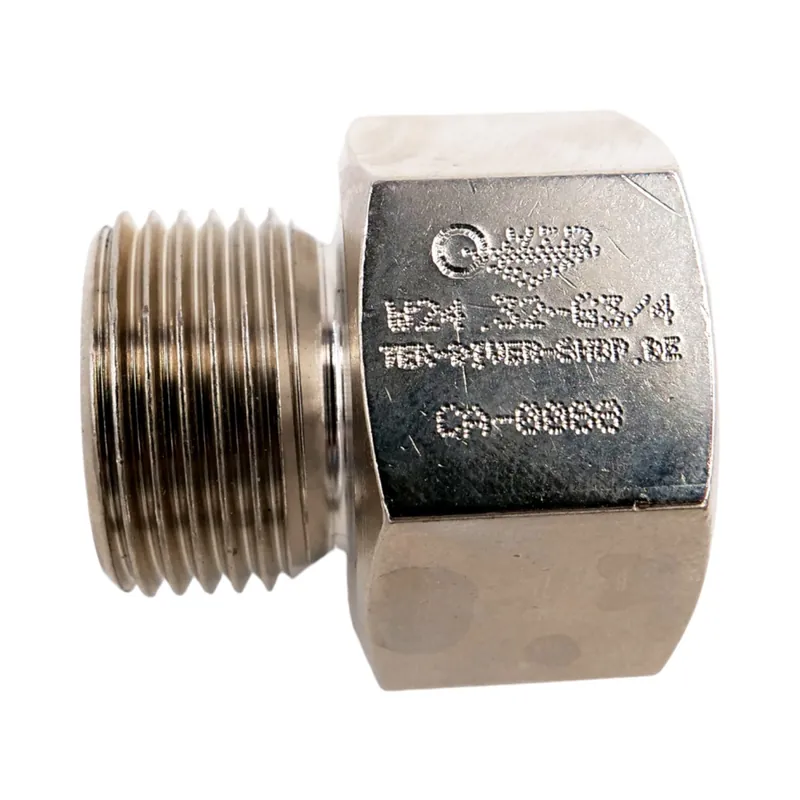

Markenprodukt Thread adapter oxygen G 3/4″ female thread – nitrogen W24 male thread

Adapter oxygen G 3/4″ female thread – nitrogen W24 male thread

Thread adapters for adapting threads on gas cylinder valves are mainly used to adapt to the different international standards for valve connection threads. The best welding equipment is useless if the fittings and pressure reducers do not fit the gas cylinder valve because, for example, different valve connections are used in France than in Germany. The use of threaded adapters for the purpose of adapting to different standards requires careful work in order to prevent the creation of dangerous constellations.

Technical data of the threaded adapter oxygen – nitrogen
-Oxygen G3/4″ female thread according to DIN 477 – Nitrogen W 24×1/14 male thread according to DIN 477
-according to DIN 477 operating pressure oxygen 200bar – nitrogen 200bar (test pressure 300bar)
-Oxygen compatible with O-ring
-Thanks to the hexagon with wrench size 32, these can also be loosened again at any time without having to handle any pliers.
Made from nickel-plated brass

The user must ensure that the selected valve outlet connection cannot be connected to connections of other standards, so that a dangerous condition occurs (e.g. leakage, incompatibility, risk of suffocation, fire hazard).
