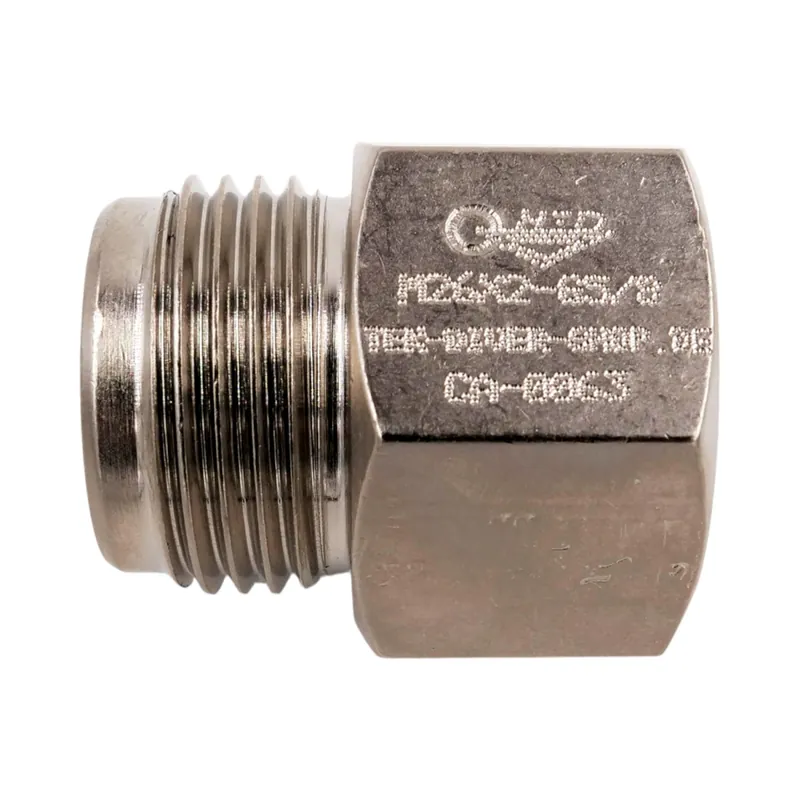

Markenware Thread adapter compressed air G 5/8″ female thread – Nitrox M26x2 male thread

Thread adapter for nitrox valves M26x2 to air regulator G 5/8″

Why use a threaded adapter from Nitrox to compressed air connection when diving? Nitrox M26x2 external thread – compressed air G5/8″ internal thread. In recent years, the diving cylinder valve with M26x2mm connection thread for mixed gases and Nitrox has become increasingly popular in diving. Regulators / regulators or the first stage are available with an M26x2 connection thread in 200 bar and 300 bar versions. The problem is that breathing air compressors and filling systems for diving cylinders usually have a compressed air connection with a G5/8″ thread. How can I fill my nitrox tank? This is where the threaded adapter comes into play. However, this adapter can also be used as an extraction adapter. Most regulators have a compressed air connection. From a technical point of view, it is common internationally to use standard compressed air regulators for nitrox up to 40% oxygen Content.

Technical data of the thread adapter Nitrox – compressed air 200 bar
-Filling and withdrawal adapter M26 x 2 external thread – G 5/8″ internal thread
-Nitrox connection thread M 26x2mm external thread 200bar – Compressed air connection G 5/8″ i.( 200 / 232 bar )
-Connection thread and sealing bottle are manufactured according to EN-144 and DIN-477
-For the connection of compressed air filling hoses of breathing air compressors or automats, such as the Poseidon Xstream Duration to the new Nitrox diving cylinder valve
Material: hexagonal nickel-plated brass
-Thanks to the hexagon with a wrench size of 30 mm, these can also be loosened again at any time without having to use any pliers.

Our thread adapters are manufactured with a test certificate in accordance with DIN EN 10204 – 3.1

The user must ensure that the selected valve outlet connection cannot be connected to connections of other standards, so that a dangerous condition occurs (e.g. leakage, incompatibility, risk of suffocation, fire hazard).
