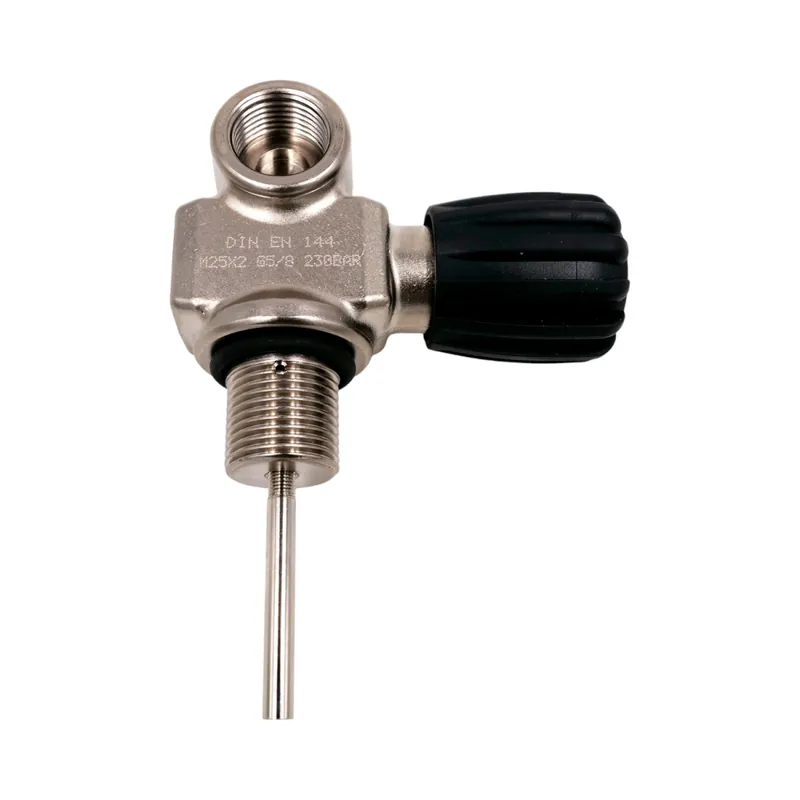

Monovalve compressed air G5/8″ 230 Bar M25x2 scuba cylinder valve right Rabatt

Diving cylinder valve G5/8″ 230bar monovalve right not expandable for compressed air according to DIN EN 144

Mono diving cylinder valves for 230 bar compressed air are the simplest variant of valves used in diving technology, which is why they are so widespread. They are mostly used on smaller cylinders or on aluminum cylinders. Also your service effort is very low because only a few components and sealing elements are needed.
Here we offer a mono diving cylinder valve for compressed air G5/8″ 230bar, which is available in the right version as well as in the left version. In combination, these valves are especially intended for sidemount diving and use in rebreathers. Suitable breathing apparatus with a G5/8″ 200/300bar connection are suitable.
Dive cylinder valves for 230bar are tested with 300-350bar pressure.

Technical data of the G5/8″ 230bar diving cylinder Valve

• monovalve compressed air 230 bar Valve orientation Right
• for cylinders with M25x2mm bottle neck thread
• manufactured according to DIN EN-144 / DIN EN ISO 12209
• connection thread G5/8″ female thread 200bar
• black rubber handwheel
• not expandable
• Step pipe and O-ring included
• Made in Germany
