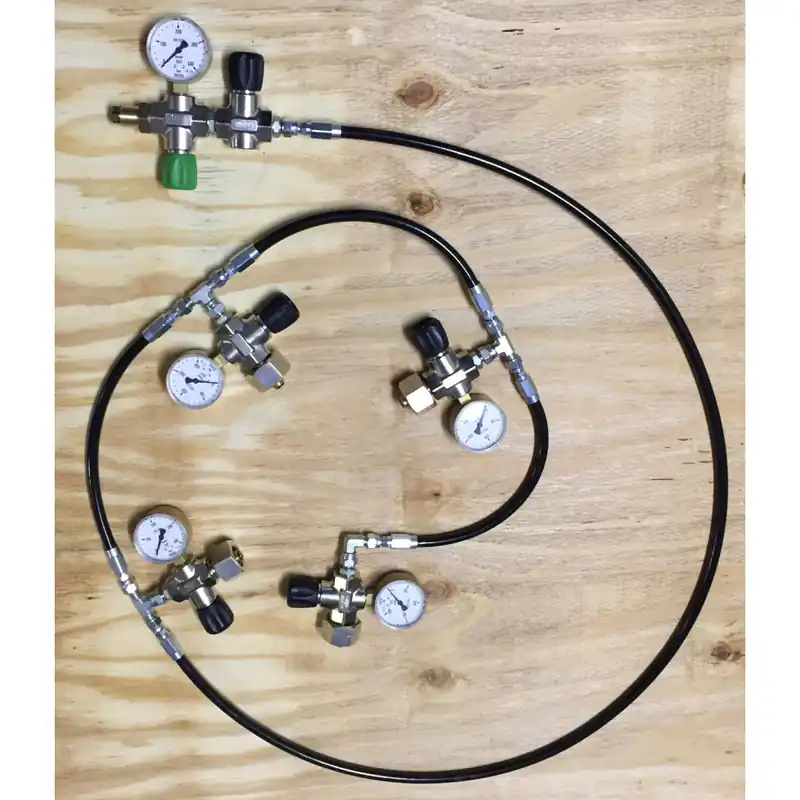

Nur Heute Oxygen filling valve for cascade filling from 4 oxygen cylinders 300 bar

Oxygen filling fitting for cascade filling from 4 oxygen cylinders 300 bar

Complete filling set for transferring oxygen or helium from 4 helium or oxygen cylinders 300 bar into a nitrox diving cylinder or trimix diving device. The filling set is designed so that each cylinder can be shut off individually but the cylinder pressure of the donor cylinder is displayed despite the valve being closed. This means that the cylinder with the right oxygen pressure / helium pressure can always be selected (cascade filling), which not only saves time but also costs as cylinders with residual pressure no longer have to be drained.

The pressure gauge on the filling hose can also be supplied in class 1.0 or as a digital pressure gauge.
The overflow unit can also be used for all gases. In the case of mixed gas cylinders (e.g. 2x oxygen, 1x helium), a non-return valve may need to be fitted upstream of the gas cylinders.

When using this filling set, there is no need to change the filling hose on the dispenser cylinders when using cascade filling or filling Trimix using different gas cylinders. Our booster can also be connected downstream of the filling hose.

Scope of delivery of the filling set
-6x pressure gauge oxygen class 2.5 63mm diameter 0…315/400 bar
-1x high-pressure shaft for hose connection G 5/8″ with 1/4″ 1x connection piece for pressure gauge + vent valve + connection shaft + throttle valve
4x center pin for multi-adapter 300bar R1/4″
-4x union nut W30x2 300bar industrial valves
-1x handwheel for G 5/8″ Compressed air connection 300 bar, long version
3x 0.5 m high-pressure hose operating pressure up to 415 bar
-6x screw socket for BF6.3mm high-pressure hose
-6x double threaded nipple G 1/4″ – G 1/4″ heavy duty version
6x adjustable T-piece heavy-duty version G1/4″ 1x union nut 2x external thread
6x F-pin for high-pressure hose 6.3mm M16x1.5
-4x T-piece high pressure 3 x R1/4″ Internal thread 1x elbow heavy-duty version G1/4″ 2x external thread
5x shut-off valve 300bar G1/4″ Internal thread on both sides
