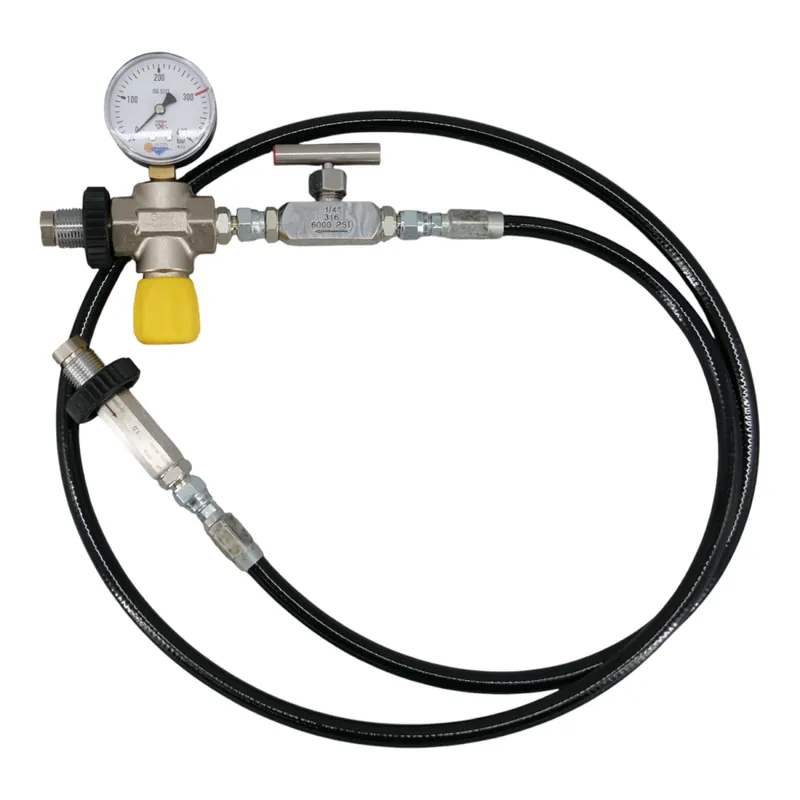

Oxygen-Compatible Transfer Hose up to 315 bar with Analog Pressure Gauge, Needle Valve, and Non-Return Valve Abverkauf

Oxygen-Compatible Transfilling Hose with 0400 bar Pressure Gauge (63 mm) and Flow Control Valve

Oxygen, helium, argon, and compressed air are supplied in high-pressure gas cylinders at 200 bar and 300 bar. How can these gases be safely and precisely transferred from storage cylinders into smaller pressure vessels or scuba cylinders, Nitrox cylinders, and Trimix cylinders? This hose can be used as a transfilling hose. With the built-in control valve, the flow rate and velocity can be finely adjusted. The oxygen-compatible pressure gauge indicates the pressure in the receiving pressure vessel or scuba tank. This hose is suitable for divers, dive centers, and diving schools that produce their own breathing gases like Nitrox or Trimix and fill scuba cylinders for rebreathers / closed circuit systems.

Technical Data of the Transfilling Hose

• Transfilling hose rated up to 315 bar at 20°C
• Analog pressure gauge up to 400 bar, accuracy class 1.6 Diameter 63mm
• Oxygen compatible (conditional resistance depending on pressure, temperature, flow rate, pressure surges, and gas purity)
• Temperature resistant from -60°C to +100°C (briefly up to +120°C)
• Construction: Inner layer Polyamide 12, polyester braiding, outer layer Polyurethane
• Total length approx. 2 m
• Bleed valve with gauge connection
• Throttle valve/shut-off valve, can be fully closed
• Both ends with G5/8″ connectors, suitable for 200 bar and 300 bar compressed air valves

Technical specifications subject to change without notice.
