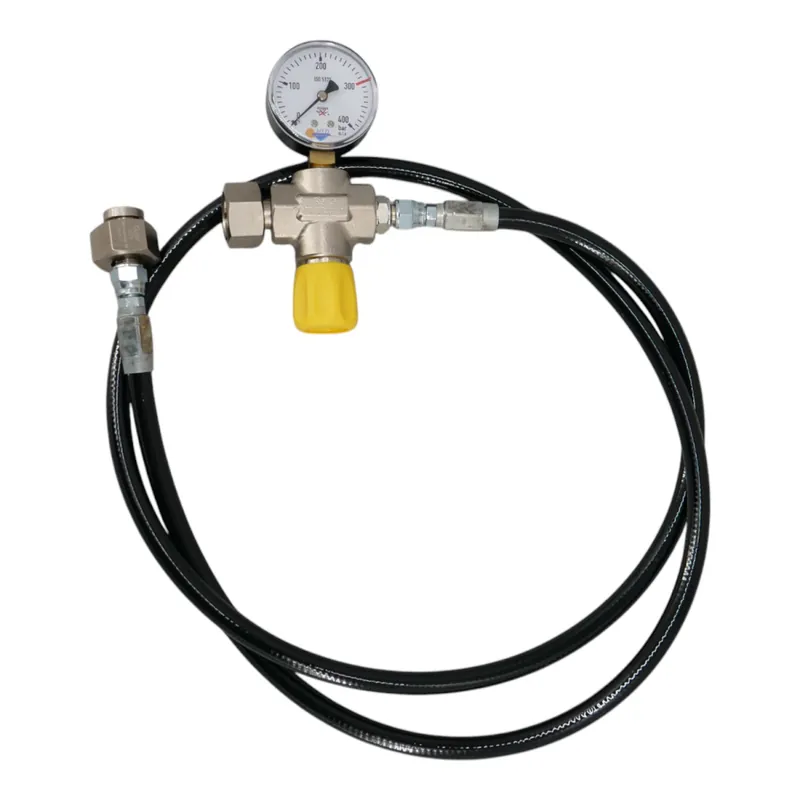

Oxygen-Compatible Transfer Hose with G3/4″ Connection up to 315 bar, Analog Pressure Gauge, without Shut-Off Valve Preiswert

Oxygen-Compatible Transfer Hose G3/4″ with Gauge 200 bar without Shut-Off Valve

Oxygen-compatible hose for decanting oxygen and non-flammable gases from high-pressure gas cylinders. The connections of the high-pressure hose are G3/4″ union nuts according to DIN 477-9 with a wrench size of 32mm. A pressure gauge up to 400 bar in Class 1.6 for reading the pressure during gas transfer. The hose is equipped with a vent valve to depressurize it before disassembly. Hose without restrictor/shut-off valve; the operator must ensure that the specified flow rate of 2550 l/min is not exceeded.

Technical Data of the Transfer Hose

• Transfer hose rated up to 315 bar at 20°C
• Analog pressure gauge up to 400 bar in Class 1.6, diameter 63mm
• Oxygen-compatible (conditionally resistant), depending on pressure, temperature, flow rate, pressure surges, and gas purity
• Temperature resistance from -60°C to +100°C (temporarily up to +120°C)
• Construction: inner core Polyamide 12, polyester braid, outer layer Polyurethane
• Total length approx. 1.9m
• Vent valve with pressure gauge connection
• Connections on both sides G3/4″, suitable for DIN 477-9 200 bar oxygen valves

Technical specifications subject to change without notice.
