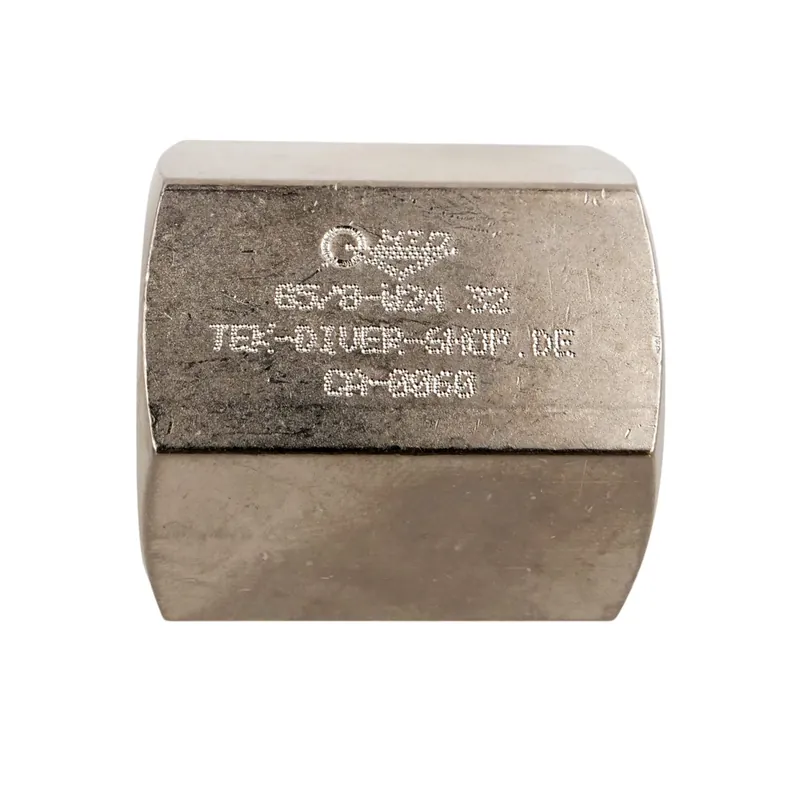

Preis Gesenkt Thread adapter compressed air G5 / 8 „internal thread – nitrogen W24 internal thread

Thread adapter DIN compressed air G5 / 8 „internal thread – nitrogen industry standard W24 internal threadThread adapter compressed air – nitrogen can be used to e.g. fill the nitrogen bottle with compressed air. This can be done with high pressure compressors or breathing air compressors, these have a filling connection with thread G5 / 8 „. Technically speaking, compressed air consists of 78% nitrogen. However, this thread adapter can also be used to connect a pressure reducer for compressed air with a 200 bar closure to a nitrogen bottle The connections and sealing bottles for the gas cylinder valves are manufactured according to the dimensions specified in EN-144.

technical details threaded adapter compressed air – nitrogen

• Width across flats across flats 30mm
• Adapter material of the double sleeve: nickel-plated brass
• O-ring 90 shore, oxygen compatible
• Thread connection W24 internal thread fits on 200bar nitrogen bottles (nitrogen valve)
• Opposite side with G5/8″ internal thread is suitable for filling hoses compressed air 200bar
• This adapter can be used as a connection adapter for compressed air regulators and pressure reducers on nitrogen bottles e.g. for tire inflation.

The user must ensure that the selected valve outlet connection cannot be connected to connections of other standards when this thread adapter is used, so that a dangerous state occurs (e.g. leakage, incompatibility, risk of suffocation). In the event of leaky connections, the bottle valve must be closed again immediately.

Suitable O-rings should also be ordered for replacement, so the availability of the adapter is increased. Our article number:
LB-11,5X2,5 O-ring thread adapter nitrogen compressed air.
“ = inch
