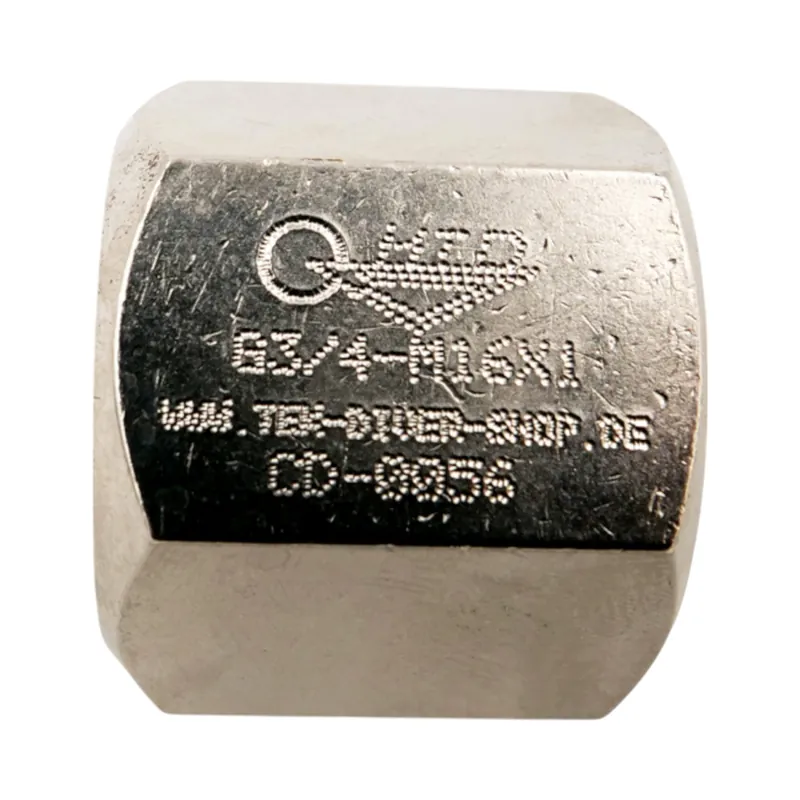

Preiswert Thread Adapter Oxygen G 3/4 „Female Thread – M16x1 Inside.

Thread adapter Oxygen G 3/4 „female thread – M16x1 inside To complete the oxygen units and oxygen transfer hoses we have assembled, various thread adapters and adapter components are required and offered by us. Of course, the threaded adapter offered here can also be used to complete other systems and plant components. The oxygen connection, the thread is made according to DIN EN-144 connection 9 and thus corresponds to the dimensions for the connection of the German oxygen valve with G3/4 „connection thread.The seal is made via an oxygen-compatible O-ring The opposite side is a M16x1 thread. The material of the threaded adapter is nickel plated brass.

technical data of the thread adapter oxygen

• Material brass, nickel plated
• Hexagon wrench size 32
• G 3/4 „connection for oxygen according to DIN EN-144, suitable for screwing onto an oxygen valve 200bar
• O-ring sealed, O-ring good oxygen compatible
• O-ring included
