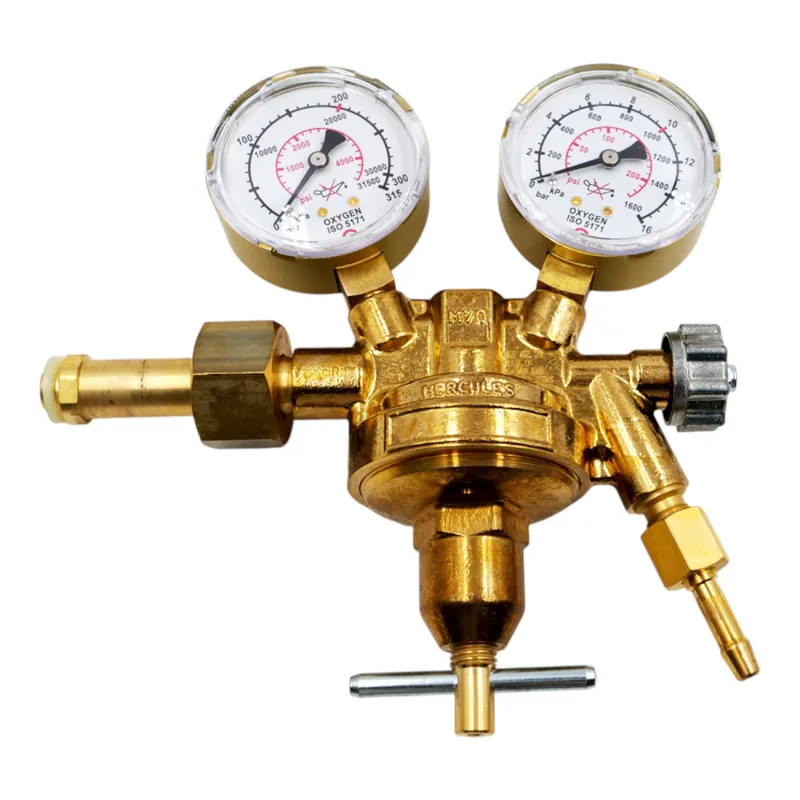

Pressure reducer for oxygen from 200 bar to 0-10 bar – G3/4″ connection thread Must-Have

Pressure regulator for oxygen from 200 bar to 0 – 10 bar adjustable

Bottle pressure regulator in brass design, with pressure gauges for bottle content and working pressure. Oxygen pressure regulator is BAM-tested. It is suitable for the temperature range of -20°C to +60°C.

Technical data:

• Single-stage design
• Max. inlet pressure 200 bar
• Adjustable outlet pressure 0 – 10 bar
• Safety valve on low-pressure side
• Inlet connection: G3/4″ union nut according to DIN 477-1
• Outlet connection: G1/4″ with 6mm nozzle according to EN 560
• Gauge connection: 2x G1/4″
• Seal: FDM
• Subject to technical improvements
• Pressure regulator meets industrial quality standards
• Image similar
