S.O.S. SH valve monovalve compressed air 300 bar M25x2mm Wochenendangebot

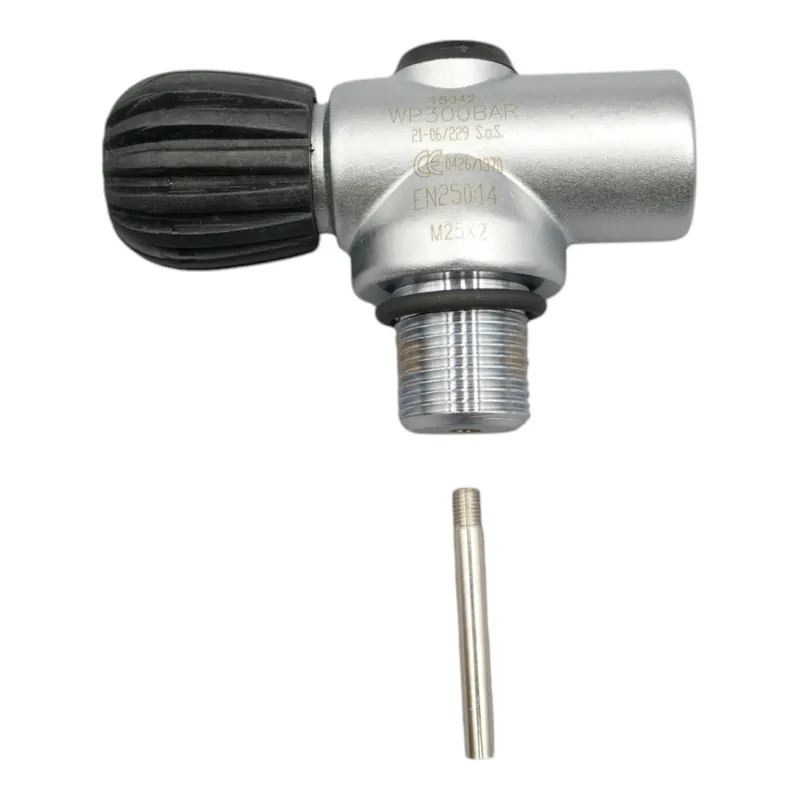

SH-Monovalve compressed air 300 bar with bottle neck thread M25x2mm

Compressed air valve suitable for use in rebreathers

Diving cylinder valves as SH valves ( standard valve horizontal represent a special feature in diving and are thus used almost exclusively in diving. As a special design these valves are used especially in rebreathers. Since rebreathers often have limited space for valves and cylinders due to their design, special designs of valves with compressed air connection are particularly in demand here.

We also offer SH valves with Nitrox connection thread M26x2.

Technical data diving cylinder valve compressed air
-Standard valve for compressed air SH valve, horizontal shut-off
-threaded connection of the tapping port G5/8″
-operating pressure 300 bar
-for cylinder neck thread M25x2mm mm ISO according to DIN EN 144-1
-O-ring and riser tube included in delivery
-Valve is a new standard shut-off device for diving cylinders, with an operating pressure of 300 bar
-It was specially designed for use in rebreathers, but can also be used elsewhere, e.g. stage bottles, diving cylinders, etc.
