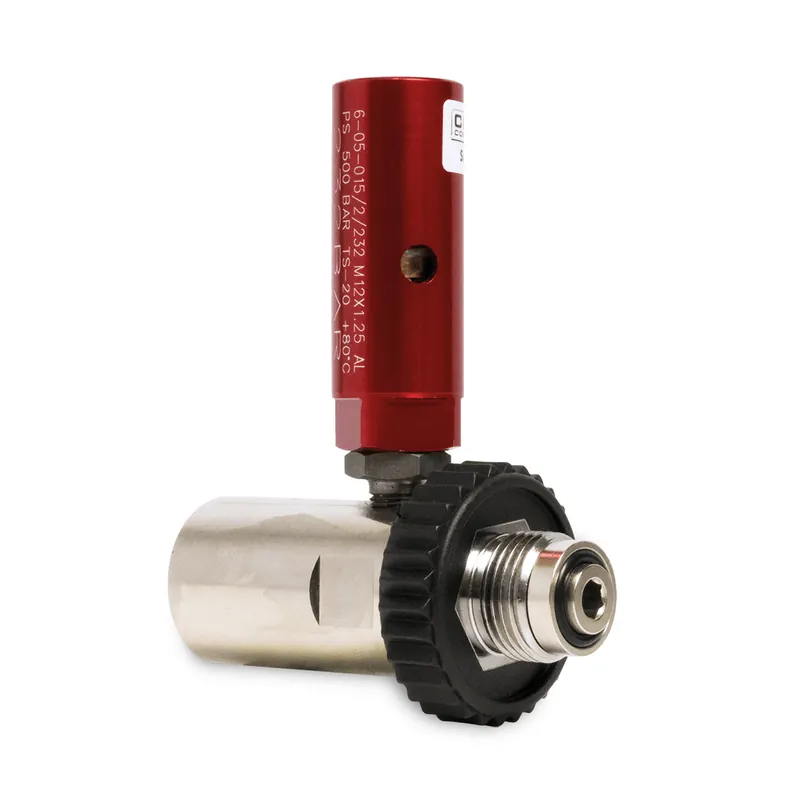

Safety filling adapter G5/8″ 300 bar – G5/8″ 200bar with 232bar safety valve Solange Der Vorrat Reicht

Thread adapter compressed air 300 bar – compressed air 200 bar with safety valve

This safety filling adapter can be used to fill 200 bar diving cylinders on 300 bar compressors, even though this rarely happens. Due to the danger of overfilling, we have attached an additional safety valve with 225 bar final pressure. The max. blow-off capacity of the safety valve is 265 l/min. The thread adapter is an additional safety feature when filling diving cylinders. When using the 200bar and 300bar systems.

This adapter is primarily intended for use with 300bar compressors that are not under constant personal observation in order to be able to fill 200bar cylinders and protect them from overfilling. The safety-conscious filling company will appreciate this adapter and thus relieve its employees.
-safety valve response pressure 225bar, spring force adjustable
-compressed air G 5/8″ female thread 300bar long to compressed air 200bar short G 5/8″ male thread
-Adapter compressed air 300bar internal thread – compressed air 200bar external thread
-socket spanner size 30mm, or handwheel
-the colour of the handwheel may differ from the picture

Detailed Thread adapter with safety valve

Application compressed air safety filling adapter
-Safety filling adapter for filling 200 bar pressure cylinders / diving cylinders with 300 bar filling pressure.

Application
-The safety filling adapter ensures that compressed gas cylinders are filled with max. 200 bar, although the inlet pressure is 300 bar.

Technical data of the compressed air safety thread adapter
-Inlet thread G5/8″ 300bar Outlet thread G5/8″ 200bar
-DIN compressed air connection / compressed air connection with safety valve 232 bar
