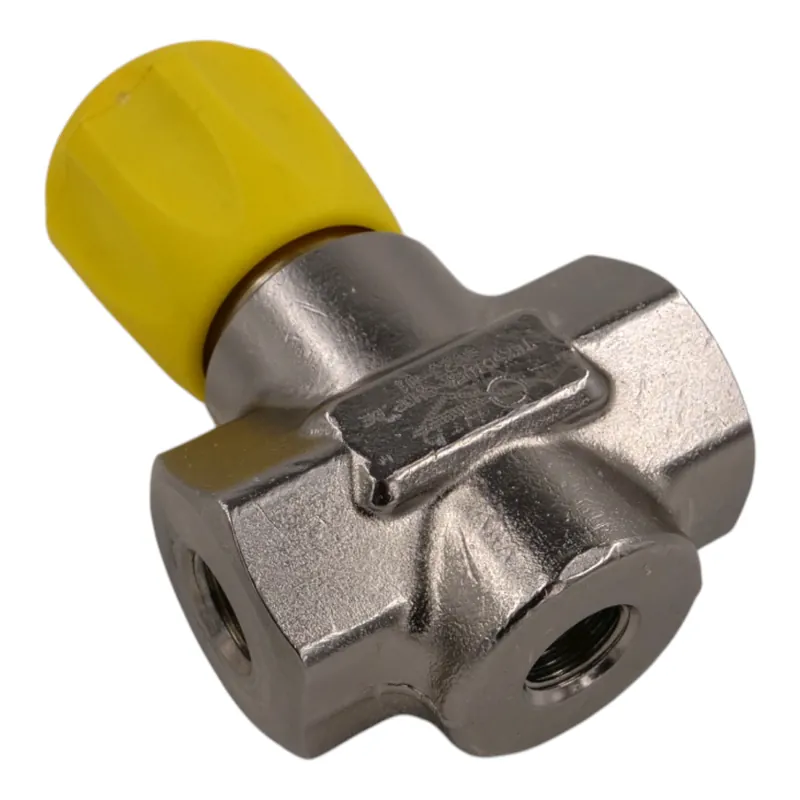

Schnäppchen Vent valve with 3x G1/4” inside for pressure gauge connection

Vent Valve for Filling Hoses and Filling Systems up to 300 bar Operating Pressure

The vent valve is an essential accessory for all applications involving gases such as compressed air, oxygen, and noble gases. The valve enables quick and safe depressurization of fittings, hoses, or pressure vessels. It is made of high-quality nickel-plated brass and features two G1/4″ ports as well as an additional G1/4″ connection for a pressure gauge. The materials and finish ensure the valve is durable, corrosion-resistant, and reliable even under challenging conditions. The sealing elements use a proven spindle-upper and spindle-lower design, with spare parts available worldwide.

The valve is designed for use with high pressures of up to 300 bar, making it an ideal tool for demanding applications in both industrial and scuba diving environments. The 200/300 bar vent valve is easy to install and can be operated with one hand.

The two G1/4″ ports of the vent valve allow for quick and easy integration into piping systems, hoses, or directly on pressure vessels. The additional pressure gauge port allows the user to monitor line or system pressure in real time and ensure it remains within permitted limits.

Technical Specifications of the Pneumatic Assembly

• Pneumatic assembly for configuring pneumatic fittings and hoses
• Working pressure up to 300 bar
• Material: nickel-plated brass
• Connection threads: 2x G1/4″ female thread, 1x G1/4″ female thread for pressure gauge
• Vent valve with upper and lower spindle construction
