Schneller Versand Breathing air compressor SMART 232 bar, delivery rate 125 L/min, 230 V 50 Hz

Breathing Air Compressor SMART 125 liters/min Filling Capacity 232 bar

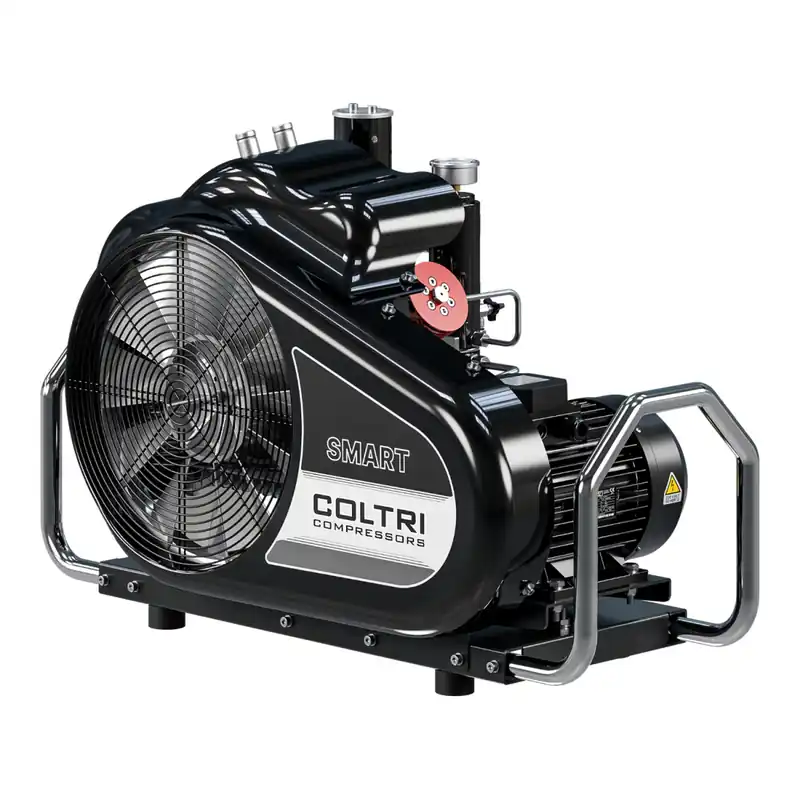

The Coltri Smart 125 EM is a compact high-pressure breathing air compressor from the Efficient Line and is ideal for private filling stations, small dive centers, workshops, or PCP applications.

With a delivery rate of 125 l/min, this model combines reliable Coltri compressor technology with compact dimensions and high mobility. The robust steel frame with carrying handles facilitates transport, while the proven 3-stage compressor unit ensures consistent performance and long service life.

The Smart 125 EM has a working pressure of 232 bar and delivers breathing air in accordance with DIN EN 12021. Two high-pressure filling connections allow flexible operation within your own filling station.

The design with forged crankshaft, Nicasil-coated cylinders, and stainless steel valves is engineered for intensive use and provides high operational safety combined with straightforward maintenance.

Technical Details

• Model: Smart 125 EM
• Gas type: Breathing air according to DIN EN 12021
• Working pressure: 232 bar
• 2 high-pressure filling connections DIN 232
• Delivery rate: 125 l/min (7.5 m³/h / 4.4 cfm)*
• Sound pressure level (LpA): 74.5 dB
• Weight: 93 kg
• Condensate separators (intermediate and final separator)
• Intake pressure: atmospheric / max. 300 mbar
• Ambient temperature: 10 °C to +40 °C
• Permissible altitude: 01,500 m
• Max. inclination: 6°
• Dimensions (W × D × H): 100 × 46 × 70 cm
• Oil capacity: 1.8 liters
• Filter system: Maxi filter (refillable or disposable cartridge)
• Electric motor operating voltage: 230 V / 50 Hz Power: 3 kW (4 HP) Rated current: 20 A
