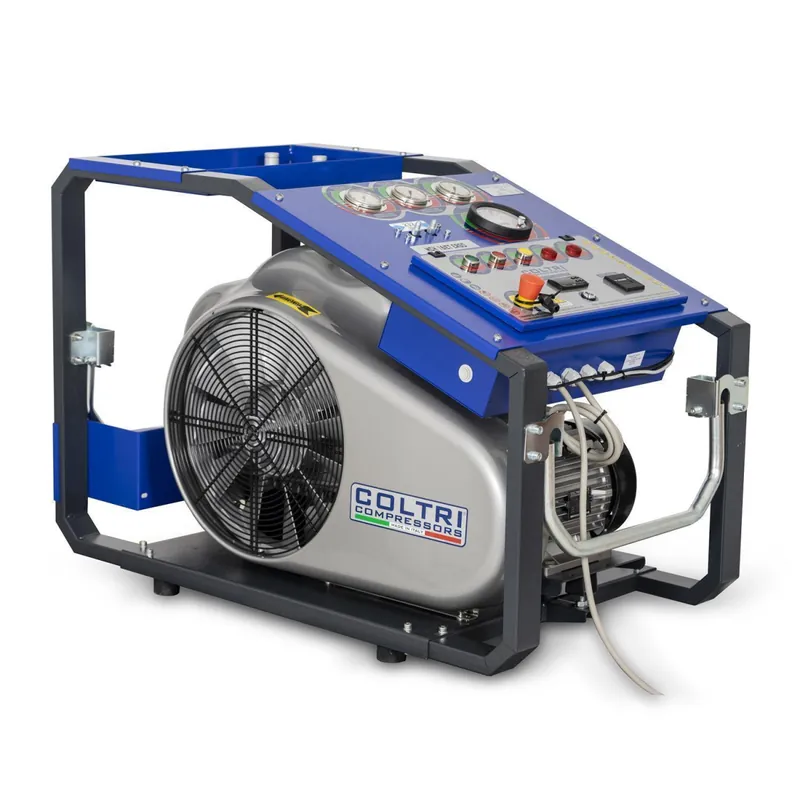

Breathing Air Compressor with Electric Drive 315 Liters/min. Filling Capacity 300bar Pressure

This Italian Coltri compressor meets many demands. It is suitable for diving schools, dive bases, or filling stations at lakes. The compressor can be operated anywhere a 400V high-voltage connection is available. The compressor has 2 filling connections and can thus fill two bottles simultaneously. With a filling capacity of 315 liters/min, it fills a 10-liter bottle in about 6 minutes. The compressor features a monitoring panel with intermediate pressure gauges, auto-stop with adjustable pressure switch, and automatic condensate drain. Furthermore, it has a maxi-filter system.

Technical Data of the Breathing Air Compressor

• Filling capacity 315 l/min.
• Electric motor Three-phase motor 400 Volt 50 Hz, 5.5Kw drive power
• Pressure stage 300bar
• Dimensions 112cm x 63cm x 77cm
• Weight 152 kg
• Noise level 95 dB
• Filling time: 10 liters from 0-200bar within 6.2 minutes
• 2 pieces of filling hoses 1.20m with connection thread 232bar compressed air connection
• Automatic end shut-off
• Automatic drainage
• Cabin interior temperature with automatic shut-off
• Pressure holding valve
• Maxi-filter unit
• Intermediate stage control pressure gauge
• Oil level control with automatic shut-off
• Automatic direction of rotation control
• Frame color blue RAL 5002

We are the German service partner of Aerotecnica Coltri Italy and can carry out spare parts and maintenance at any time.

When operating breathing air compressors, waste oils may arise. Please observe the waste oil regulation for the disposal of waste oil.

„`
