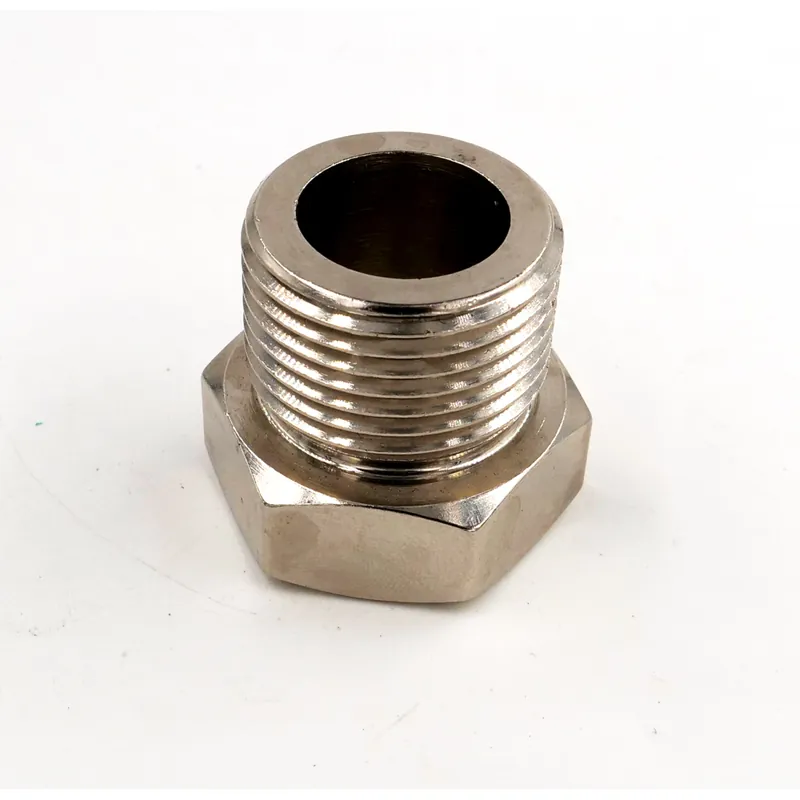

Solange Der Vorrat Reicht Pressure screw G5/8″ Compressed air connection 200/232bar, short version

Pressure screw for G 5/8″ compressed air connection 200/232 bar

Pressure screw for safe connection of compressed air connections with 200/232bar G5/8″ threads. The hexagon offers the possibility of an assembly with an open-end wrench size 30 mm. The annoying tightening by hand or a pipe wrench is no longer necessary and can be screwed with a suitable tool non-destructively. This pressure screw can of course also be used on filling hoses, overflow hoses and connecting hoses. This pressure screw can be used for permanent piping on accumulator banks, filling ramps and filling bars.

• Pressure screw for connecting shafts air valves 200/232bar G5/8″
• Internal diameter 16mm
• thread G5/8″ 200/232bar 11mm long, total length with hexagon 22mm
• spanner size 30mm
• suitable for all high pressure shafts with 16mm diameter
