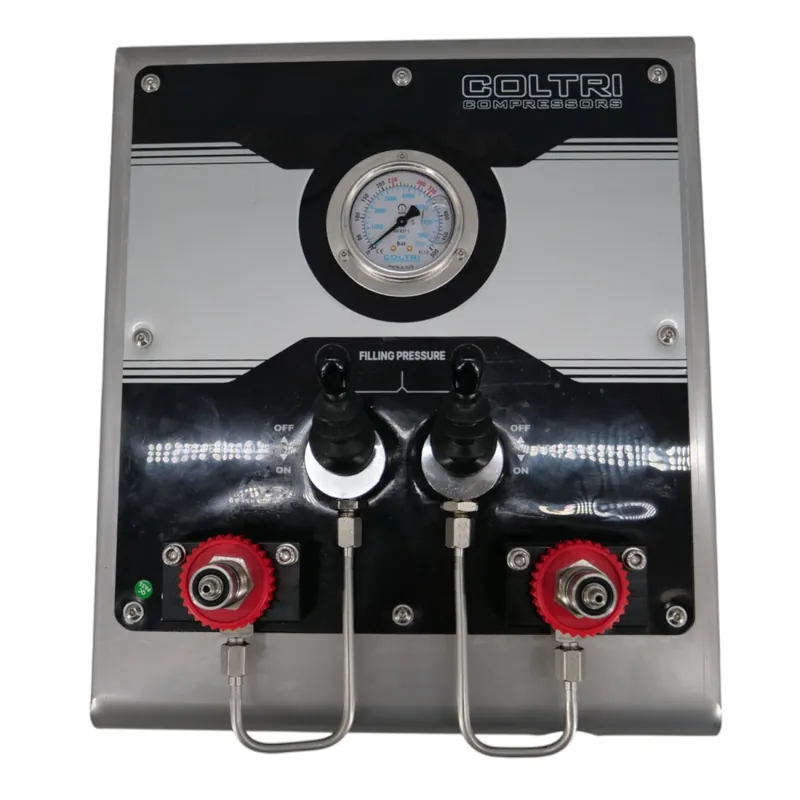

Filling panel with 2x 300bar separate outlet for direct connection

The filling panel is specially designed for use in paintball and firefighting. The filling ramp is used wherever high-pressure compressors are installed in separate rooms and are separated from the filling location of the compressed air tanks. The filling bar offers two connections for 300 bar, allowing flexible filling of various breathing air bottles/paintball bottles.

The filling station offers two 300bar compressed air G5/8″ male thread DIN connections. The supplied connection hose has a 7/16″ JIC thread and is 3.0m long. This allows them to be connected directly to Coltri compressors without an adapter.

With an additional thread adapter G5/8″ female/female thread, sport rifle cartridges can be filled directly.

Technical Data

• Sturdy stainless steel housing
• two outlets for 300bar
• Connection thread G5/8″ compressed air 300bar according to DIN EN 144-2
• Total size: 34×43.6×26.9cm
• for wall mounting
• Length of connection hose: 3.00m
• 1 glycerin-filled pressure gauge for precise pressure display (input pressure)
• Compliant with EN 12100/112100/2
• Maximum pressure: 350bar

„`
