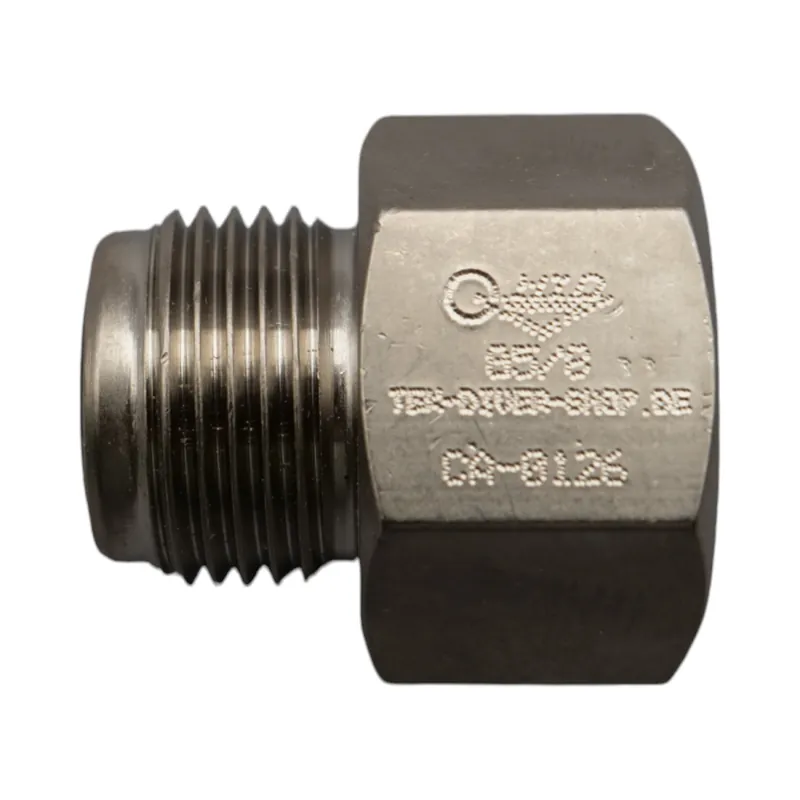

Sonderangebot Thread adapter compressed air G 5/8″ female thread – compressed air G 5/8″ male thread

Thread adapter 200 bar compressed air G 5/8″ Female thread – 200 bar compressed air G 5/8″ male thread

Threaded adapters with female thread – male thread can be used to join filling hoses as an extension. The thread of the adapter is manufactured according to the specifications of EN-144 and is a G5/8″ thread as used for compressed air / compressed air according to the standard. The thread adapter is sealed with an O-ring. Another conceivable application is the extension of valve connections if the space on the valve is too small for filling connections or tapping regulators. The material is nickel-plated brass, a material that is generally used for the manufacture of fittings. The external hexagon enables tightening and loosening with an open-end wrench so that the thread adapter is not damaged by handling with pliers.

Thread adapter compressed air – compressed air technical data
Material nickel-plated brass, hexagon with width across flats 30mm
-1 x G 5/8″ Internal thread 1 x G 5/8″ Male thread short, 200 / 232 bar compressed air connection
-Also available in 300 bar version on request

Our adapters are manufactured with a test certificate in accordance with DIN EN 10204 – 3.1
