Wochenendangebot PREDATOR breathing air compressor 140 l/min 400V 50Hz 300bar

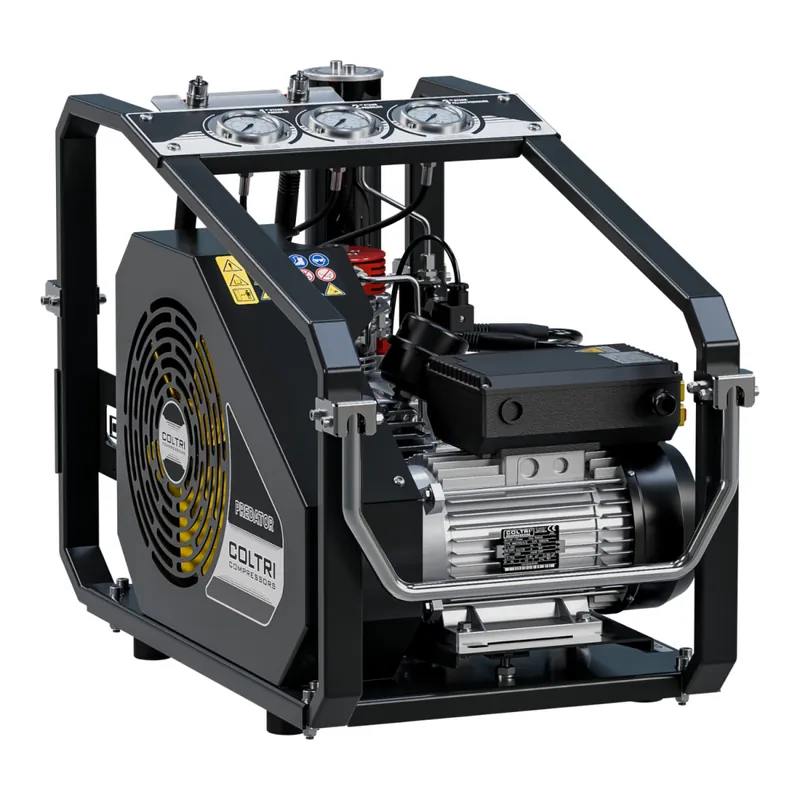

Breathing Air Compressor PREDATOR 300bar 140 l/min with Electric Motor 400 V / 50 Hz

The Predator by Arotecnica Coltri is a compact and powerful high-pressure breathing air compressor for applications in diving, industry, and rescue services. With a weight of approximately 80 kg, the unit is suitable for mobile use and delivers a consistent output of 140 l/min. The integrated Maxi filter system ensures high breathing air quality and complies with the requirements of EN 12021. The three-stage high-pressure pumping unit in aluminum monoblock design stands for high reliability, long service life, and low maintenance requirements. An automatic condensate drain and end-pressure shut-off at 300 bar ensure safe and efficient operation. The Coltri Predator produces breathing air in accordance with DIN EN 12021 and is also suitable for Nitrox up to 40 % oxygen as well as technical gases such as nitrogen and helium. This makes it an ideal solution for divers, clubs, fire brigades, and workshops requiring a mobile system.

Technical Data

• Delivery rate: 140 l/min (8.4 m³/h) at 20 °C
• Compression stages: 3-stage
• Intake filter: max. 10 µm
• Maximum operating pressure: 350 bar
• Nominal operating pressure: 300 bar, automatic shut-off when end pressure is reached
• Gases: breathing air (EN 12021), Nitrox up to 40 %, nitrogen, helium
• Operating temperature: 10 °C to +40 °C
• Operating altitude: up to 2,000 m above sea level
• Filtration and safety system: Maxi filter system for breathing air purification in accordance with EN 12021
• Automatic condensate drain (time-controlled)
• Motor version: 3 kW (4 hp)
• Voltage: 400 V / 50 Hz (three-phase)
• Dimensions (W × D × H): 810 × 440 × 580 mm
• Weight: approx. 7579 kg

Scope of Delivery

• Coltri Predator high-pressure breathing air compressor including Maxi filter system
• 2 cylinder connections DIN 300 bar
• 2 high-pressure filling hoses, each 1.2 m
• Automatic condensate drain
• End-pressure shut-off system
• Operating and maintenance manual, CE declaration of conformity
