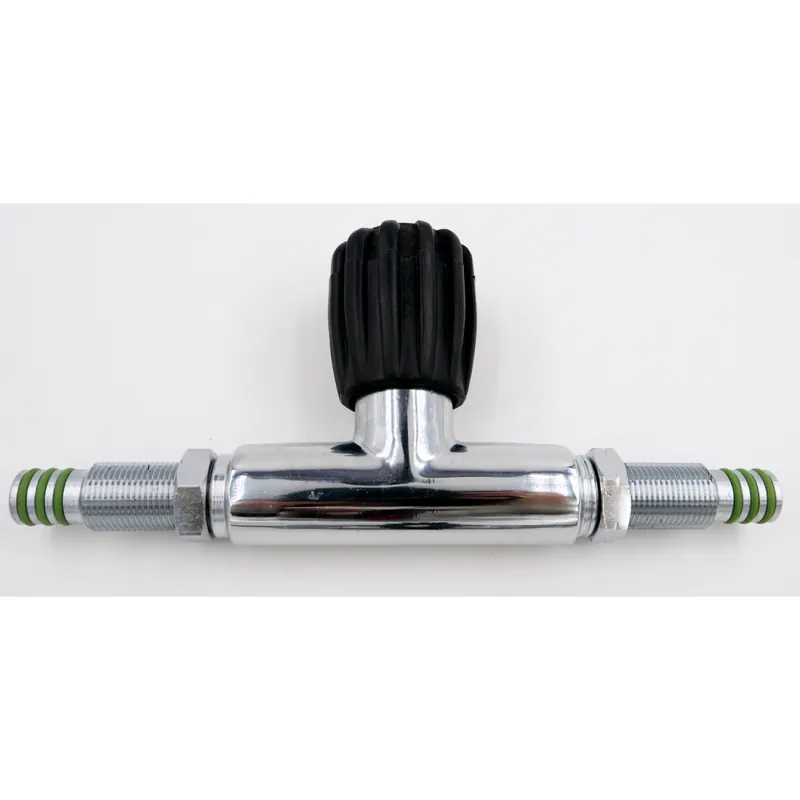

Meistverkauft Shut-off bridge bridge centre part S.O.S. 200/300bar, 190 mm distance medium

Bridge centre part for diving cylinder valves S.O.S. lockable

Diving cylinder valves as valve combination with lockable bridges extend the diving cylinder to a double unit. The diving cylinders can be closed individually during the dive, so that if one regulator fails, the corresponding diving cylinder valve can be closed. The air supply can be fed to the second regulator via the lockable bridge middle section, which is opened. This means that the high air supply is always available. However, the bridge middle part is the weakest link in the chain and is quickly bent if the diving apparatus should fall down. We offer the bridge centre part as a replacement or to complete already existing diving cylinder valves.

Technical data of the bridge centre part
-bridge middle part lockable 200 / 232bar and 300bar
-suitable for the valves of the company San-O-Sub
-triple O-ring sealed
-suitable for the diving gases air, nitrox, trimix and oxygen
-for diving cylinders with 190mm distance cylinder centre – cylinder centre
-centre part for diving cylinder valves for extension to the valve bridge
-for diving cylinders with 171mm diameter e.g. 8, 10, 12 litres
-connection thread M16x1,25 right- and left-hand thread secured with lock nuts
