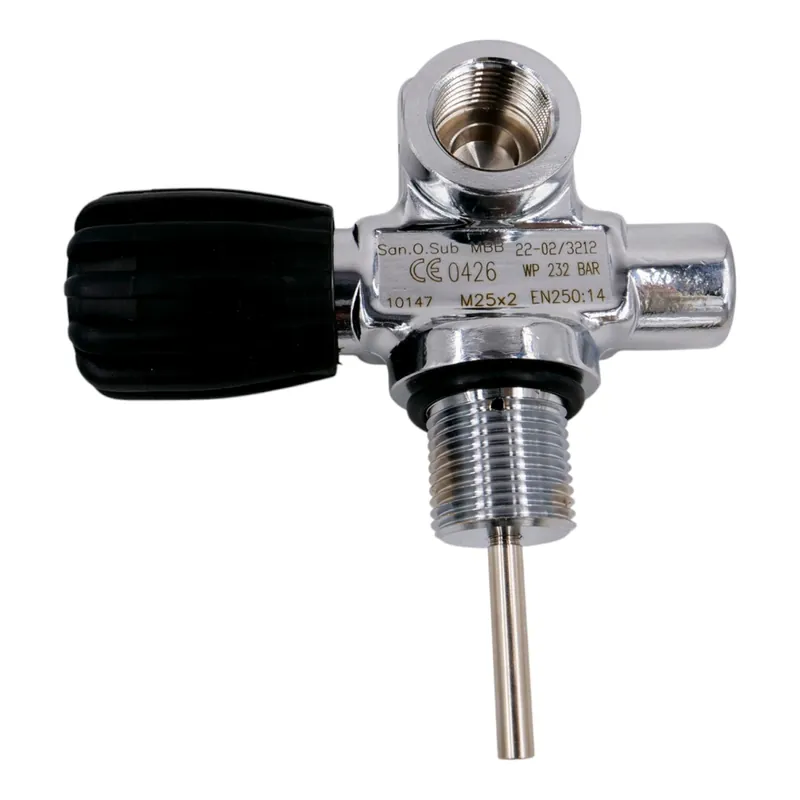

S.O.S. bridge monovalve G5/8″ compressed air 232 bar left hand diving cylinder valve M25x2 Neuheit

Diving cylinder monovalve compressed air 232 bar left expandable

The S.O.S. bridge monovalve is a special valve used in connection with diving cylinders. It is a left hand diving cylinder valve with a thread M25x2 which is screwed into the diving cylinder. The valve is equipped with a G5/8″ thread to connect to the compressed air source. As a monovalve, the connection for the second outlet can be closed with a blind plug M16x1.25 (left-hand thread).

The bridge monovalve was developed to ensure safety while diving. It allows the diver to balance the breathing gas supply between two separate cylinders. When one of the cylinders is empty, the diver can switch the valve to use the remaining breathing gas from the full cylinder. This increases the dive time and gives the diver more time to return safely to the surface.

The valve is designed for a working pressure of 232 bar (or 3,365 psi), which is in line with common compressed air standards for scuba cylinders. It provides a reliable supply of compressed air during the dive.

-monovalve compressed air 232 bar
-left bridge valve
-for cylinders with metric M25x2 cylinder neck thread
-manufactured according to DIN EN-144
-Certified according to EN 250:14
-operating pressure 232 bar
-black handwheel
-Diving cylinder valve expandable on the right side
-configured for oxygen suitability
-ascending pipe
-O-ring

-The blind plug for use as a monovalve is included in the scope of delivery
