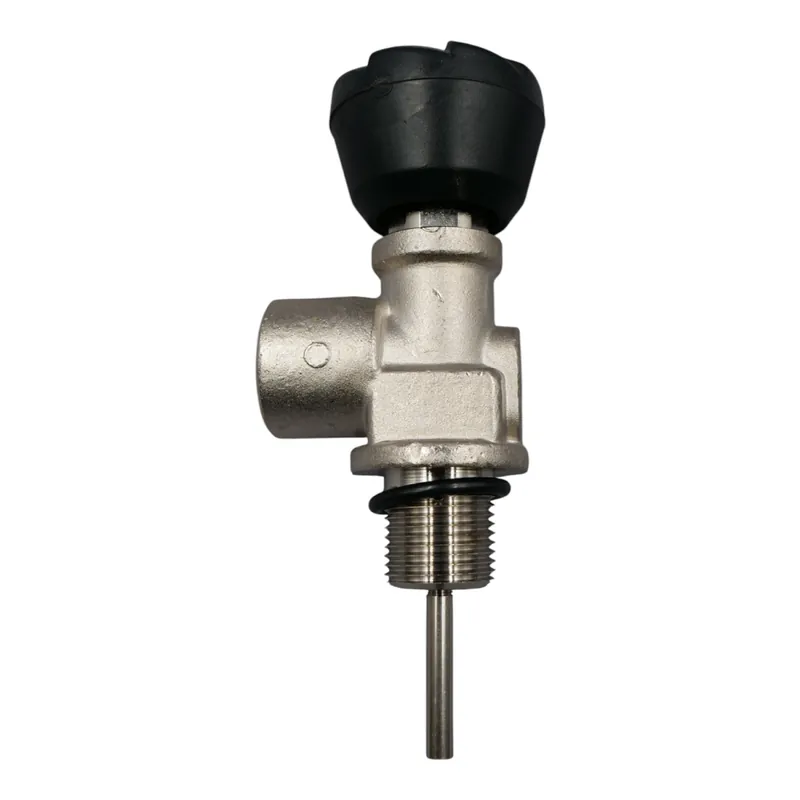

S.O.S. S-Monovalve Compressed Air G5/8″ 300bar M25x2 Diving Cylinder Valve Neuheit

„`html

Monovalve Compressed Air G5/8″ 300 Bar S- Diving Cylinder Valve Neck Thread M25x2

The standard diving cylinder valve (S-valve) has a metric M25x2 thread for screwing into the neck thread of the diving cylinder or compressed gas cylinder. The maximum operating pressure corresponds to the pressure level specified by DIN EN-144 up to 300 bar. The valve has the shut-off mechanism and the handle for opening and closing in extension of the cylinder axis. The outlet connection is mounted at a right angle to the cylinder axis. The connection thread for the pressure reducer or regulator is the G5/8″ connection thread provided for compressed air according to DIN.

Technical Data Diving Cylinder Valve

• Monovalve for compressed air 300 Bar with G5/8″ internal thread for connecting regulator / pressure reducer
• for cylinders with M25x2mm neck thread
• Manufactured according to EN-144
• Pressure level 300 bar
• black handwheel, handwheel in extension of the cylinder axis
• O-ring oxygen compatible

„`
